PLC Conveyor Trainer Experiments for Mechatronics Students
A PLC conveyor trainer turns ladder logic into a visible, measurable process. Students do not only watch bits change on a screen: they observe a motor start, track a workpiece with sensors, actuate pneumatic stations, verify timing and diagnose faults. That combination makes a compact conveyor especially useful for mechatronics, industrial maintenance and introductory automation courses.
This guide outlines a progressive set of PLC conveyor trainer experiments for a three-station sorting module. Instructors can use the sequence as a complete laboratory unit or select individual exercises to support PLC programming, sensors, pneumatics and commissioning lessons.
What students should learn
A well-planned conveyor laboratory should move from component-level checks to automatic sequence control. By the end of the unit, students should be able to:
- identify field devices and create an accurate digital I/O map;
- write and test start/stop, interlock, timer and counter logic;
- commission photoelectric or proximity sensors and pneumatic outputs;
- build manual, single-cycle and automatic operating modes;
- document faults using electrical drawings, PLC status and measured evidence;
- explain how mechanical, electrical and program behavior affect one another.
12 PLC conveyor trainer experiments
| Experiment | Student task | Evidence for assessment |
|---|---|---|
| 1. Machine identification and safe start-up | Locate the PLC, power supply, conveyor drive, sensors, valves, cylinders and emergency controls. Complete a pre-start inspection. | Annotated component list and signed start-up checklist. |
| 2. I/O mapping | Trace each pushbutton, sensor, motor command and solenoid to its PLC address. Build a tag table using meaningful names. | Verified I/O list with device, address, normal state and function. |
| 3. Input monitoring | Observe each input online while manually presenting a workpiece or operating a control. Compare electrical state with the PLC tag. | Input test sheet showing expected and observed states. |
| 4. Manual output and conveyor jog | Create a supervised jog command with stop and permissive conditions. Test the conveyor without automatic sequencing. | Program rung, test procedure and confirmation that interlocks work. |
| 5. Three-wire start/stop logic | Program seal-in logic for conveyor run, including stop priority and a restart rule after power loss. | Working routine plus a short explanation of safe restart behavior. |
| 6. Sensor-to-conveyor coordination | Stop or index a workpiece at a defined station using a sensor. Measure response and adjust logic to prevent repeated triggering. | Timing observations and an updated rung or function block. |
| 7. Single-cylinder cycle | Command one pneumatic sorting cylinder, confirm extend/retract behavior and add a timeout fault. | Sequence chart and demonstrated timeout alarm. |
| 8. Three-station sorting sequence | Route workpieces through three stations using sensor conditions and assigned destinations. | Functional automatic sequence and I/O status record. |
| 9. Timers, counters and production totals | Add dwell timing, batch counting and a reset function. Test boundary cases. | Test results for normal, zero and maximum-count conditions. |
| 10. Manual/automatic mode control | Build separate manual and automatic modes with clear mode ownership and output interlocks. | Mode table showing which commands are allowed in each state. |
| 11. Alarm handling and recovery | Create alarms for missing workpiece, sensor disagreement or cylinder timeout. Define acknowledgment and recovery steps. | Fault matrix with trigger, indication, response and reset condition. |
| 12. Systematic troubleshooting challenge | Diagnose an instructor-inserted wiring, sensor or logic fault without random program changes. | Troubleshooting log showing observations, hypothesis, test and correction. |
How to organize the laboratory
For beginning students, use short experiments with one observable outcome. Intermediate students can combine sensor, conveyor and cylinder tasks into a state-based sequence. Advanced students can add production data, fault history, communications or an HMI when those components are part of the selected configuration.
A useful grading rubric separates four skills: correct operation, safe logic, documentation and troubleshooting method. This prevents a program that happens to run once from receiving the same result as a system that is repeatable and understandable.
Choosing the PLC platform

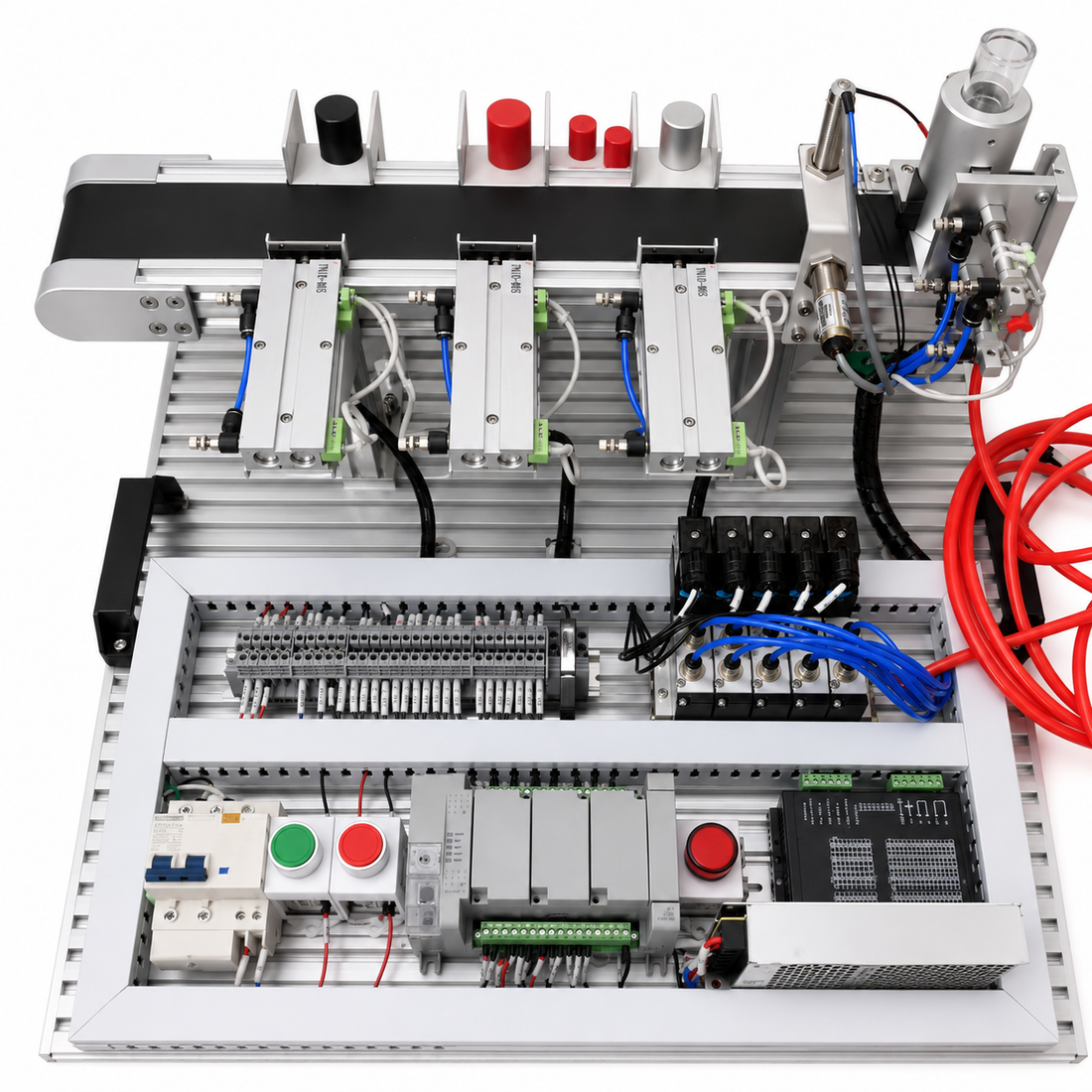

The VISTON desktop PLC conveyor sorting trainer is listed with Siemens S7-1200 and Allen-Bradley Micro830 variants, with other PLC selections available by request. Choose the platform that matches the software and controller family already used in your course. If the course is tied to a specific catalog number, firmware revision or programming package, put those requirements directly in the request for quotation.
Instructor procurement checklist
- Required PLC family, CPU catalog number and programming software version
- Number and type of digital inputs and outputs students must access
- Sensor types and number of sorting stations
- Pneumatic air-source requirements and available laboratory pressure
- Local supply voltage, plug type and bench-space limits
- Required drawings, manuals, sample files and lab exercises
- Need for HMI, remote I/O, industrial networking or custom faults
- Class size, number of students per station and target delivery date
