CompactLogix Trainer Requirements for Studio 5000 Courses

A course titled “Studio 5000” needs more than a generic PLC trainer. Students must work with a controller family, communications architecture and I/O configuration that support the intended Studio 5000 Logix Designer activities. Before purchasing equipment, instructors should translate the syllabus into specific hardware, software and laboratory requirements.

Core requirement 1: the controller must match the course

CompactLogix controllers and Micro800 controllers serve different teaching environments. CompactLogix is programmed in Studio 5000 Logix Designer, while Micro800 instruction generally uses Connected Components Workbench. Both can teach PLC concepts, but a Micro800 trainer is not a direct substitute when a syllabus, certification pathway or employer partner specifically requires Studio 5000.

Specify the acceptable CompactLogix family, CPU catalog number, firmware revision and required Studio 5000 version before ordering. Compatibility should be verified against the institution's existing computers and licenses.

Core requirement 2: students need usable I/O access

The trainer should expose enough labeled inputs and outputs for students to build and diagnose real routines. At minimum, define:

• number of digital inputs and outputs;
• pushbuttons, selector switches and indicator devices;
• whether analog input/output is part of the course;
• terminal access for meter measurements and wiring exercises;
• acceptable voltage and current at student connection points;
• how faults can be inserted without damaging hardware.

Core requirement 3: Ethernet and EtherNet/IP capability

Studio 5000 courses commonly include controller communications, device discovery and module configuration. If the syllabus requires EtherNet/IP, the station should provide the correct Ethernet interfaces, accessible network connections and compatible devices. A managed switch, remote I/O, HMI or drive may be useful, but these should be specified as required or optional—not assumed from the words “network ready.”

Core requirement 4: motor-control hardware must support the labs

A CompactLogix and PowerFlex 525 combination can extend the course into drive commissioning, hardwired motor control and EtherNet/IP command/status data. Confirm the drive catalog, motor rating, incoming supply, protective devices and control methods. If analog speed reference, forward/reverse operation or network fault recovery is required, put each outcome in the specification.

Core requirement 5: software and revision compatibility

Recommended Studio 5000 laboratory sequence

1. Create a Studio 5000 project for the selected CompactLogix controller.
2. Configure the communication path and go online with the controller.
3. Map and test local digital inputs and outputs.
4. Program start/stop, seal-in and stop-priority logic.
5. Add timers, counters and structured tag naming.
6. Build manual/automatic modes with safe interlocks.
7. Use program organization, routines and reusable instructions appropriate to the course level.
8. Add and commission a PowerFlex 525 or other specified EtherNet/IP device.
9. Read drive status, command operation and handle faults without automatic unsafe restart.
10. Diagnose an I/O, parameter, communication or logic fault and document the evidence.

Procurement specification checklist

Standard platform and optional additions

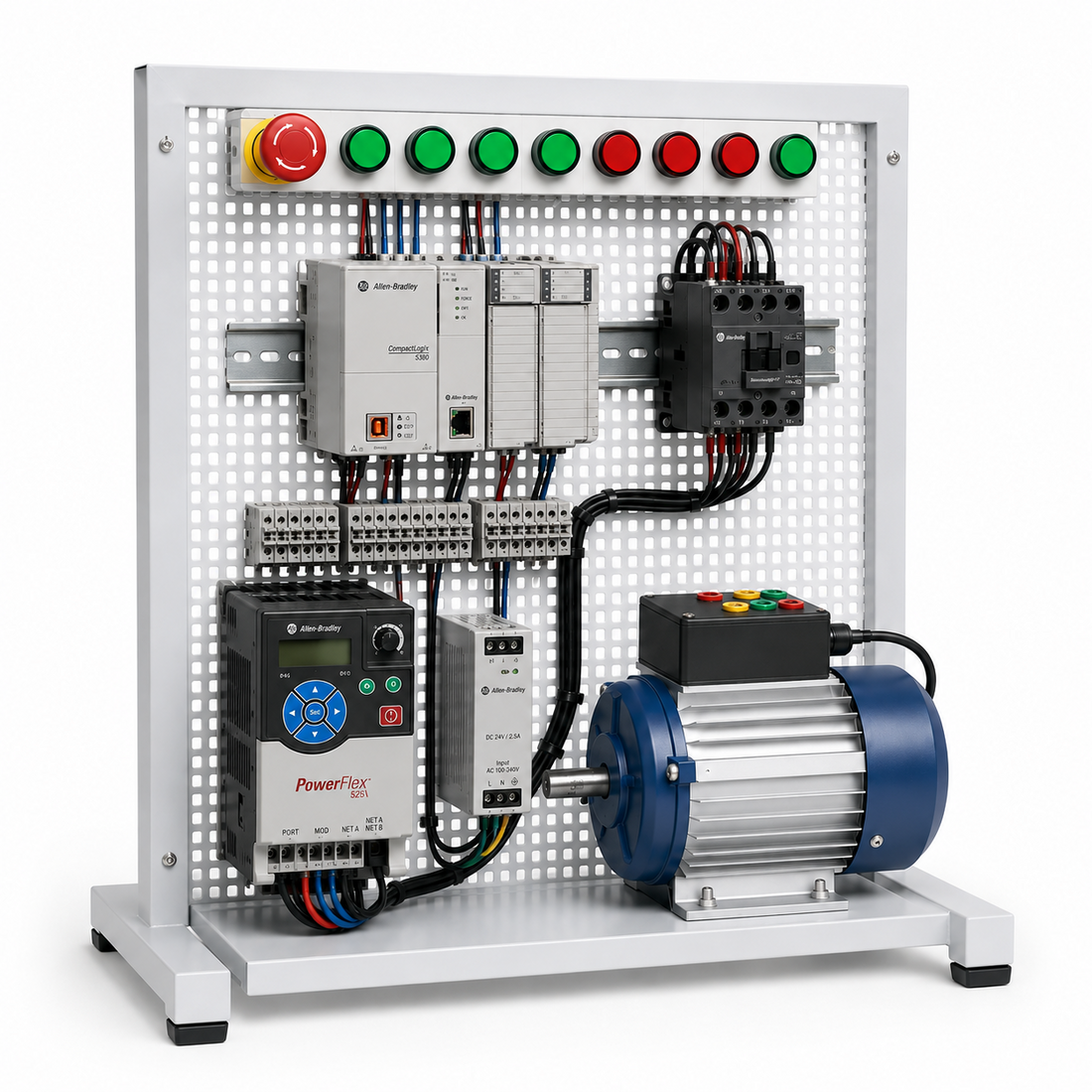

The VISTON Allen-Bradley CompactLogix Studio 5000 PLC & PowerFlex 525 trainer is designed around PLC, VFD, motor-control and EtherNet/IP learning. Depending on the course, a school may also request HMI, additional I/O, networking, custom fault points or other components. The product photograph is representative; the final bill of materials should be confirmed against the requested CPU, voltage and curriculum.

English labels, drawings, sample program files, manuals and lab exercises may be available for selected configurations, but the required deliverables should be listed in the quotation so the instructor knows exactly what will arrive.
