How to Choose a PLC Trainer for a Technical School
Share

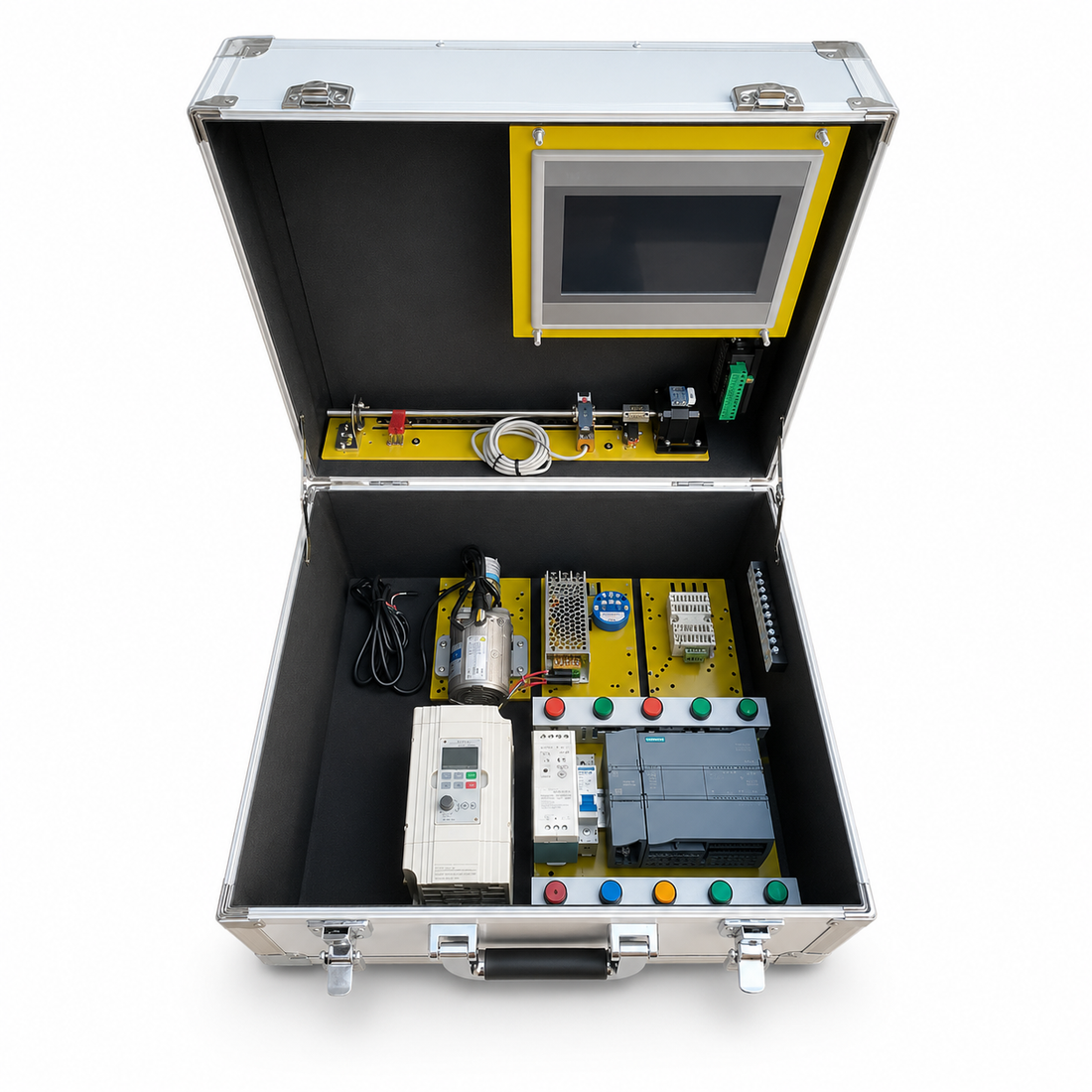

Choosing a PLC trainer for a technical school is not simply a matter of selecting a controller and adding a few switches. The right training system must support the learning outcomes of the program, fit the available laboratory space, match local power requirements, and remain useful as students progress from basic ladder logic to commissioning and troubleshooting.
This guide gives instructors, CTE directors, department chairs, and laboratory planners a practical framework for comparing PLC training equipment.
1. Start with the skills students must demonstrate
Before comparing hardware, write down the tasks students should be able to complete at the end of the course. A strong introductory PLC course normally includes digital input and output wiring, ladder logic, timers, counters, interlocks, sequence control, basic HMI operation, and systematic fault finding. Intermediate programs may add analog signals, VFD control, industrial networking, servo or stepper motion, pneumatics, and process control.
Use these outcomes as the equipment specification. A trainer should not contain expensive modules that never appear in the curriculum, but it should provide enough accessible I/O and expansion capacity to avoid becoming obsolete after one semester.
2. Select the PLC platform and software environment
The software platform often matters more than the controller price because it determines the workflow students will practice.
| Platform | Best fit | Typical learning focus |
|---|---|---|
| Allen-Bradley Micro800 | Introductory and cost-conscious programs | Connected Components Workbench, machine control, I/O, HMI and VFD basics |
| Allen-Bradley CompactLogix | Industrial maintenance and advanced automation | Studio 5000, EtherNet/IP, tag-based programming and integrated systems |
| Siemens S7-1200 | Introductory through intermediate automation | TIA Portal, PROFINET, HMI, analog I/O and compact machine control |
| Siemens S7-1500 | Advanced automation and distributed I/O | TIA Portal, ET 200SP, diagnostics, networking, motion and modular systems |
Rockwell Automation describes Connected Components Workbench as an integrated environment for Micro800 programming, simulation, device configuration, and HMI development. CompactLogix systems use Studio 5000 as their common engineering environment. Siemens uses STEP 7 in TIA Portal for controller configuration, programming, and diagnostics. Confirm software licensing, supported versions, and computer requirements before purchasing equipment.
3. Require real, accessible I/O wiring
Students learn more when they can trace signals from a field device to a terminal, identify the PLC address, verify voltage, and diagnose a wiring error. Look for clearly labeled terminal blocks, protected 24 VDC control circuits, accessible digital and analog channels, replaceable fuses, and documentation that matches the physical panel.
A trainer that hides every connection behind an internal harness may be convenient for demonstrations, but it provides less value for industrial wiring and maintenance courses. For advanced classes, consider external I/O terminals that allow the PLC to connect to conveyors, sensors, motor-control modules, or student-built projects.
4. Decide which applications belong on the trainer
A basic trainer can use push buttons, selector switches, indicator lights, relays, and simulated loads. Programs focused on industrial maintenance usually benefit from a VFD and motor, contactors, overload protection, and fault simulation. Mechatronics programs may add sensors, pneumatic cylinders, conveyors, HMI, servo motion, machine vision, or robotic handling.
The best configuration is not the one with the most components. It is the one that supports a logical sequence of exercises and lets instructors assess individual skills.
5. Check safety, voltage, and laboratory installation
Specify the incoming voltage and frequency before ordering. For U.S. schools, that commonly means a 120 V, 60 Hz input with low-voltage control circuits where practical. Ask how mains voltage, rotating equipment, pneumatic motion, and stored energy are guarded and isolated. Emergency stops, circuit protection, grounding, clear warning labels, and instructor-controlled power are important design features.
Equipment selection does not replace an institution’s electrical safety procedures, supervision, or local regulatory requirements.
6. Evaluate curriculum and instructor support
Hardware without usable exercises often becomes demonstration equipment rather than a teaching system. Ask whether the trainer includes wiring diagrams, component lists, I/O maps, sample programs, experiment instructions, troubleshooting tasks, and answer guidance. Siemens Education Cooperation, for example, organizes trainer packages around learning and training documents, illustrating the value of connecting hardware to structured course content.
7. Plan for expansion and total purchasing cost
Compare the delivered cost, not only the equipment price. Include software, required computers, shipping, duties, power conversion, compressed air, replacement parts, instructor training, and future modules. A modular trainer can allow a school to begin with PLC and HMI fundamentals, then add motor control, motion, process control, or robotics later.
A practical short list
- Defined student competencies and course level
- PLC platform used by local employers
- Software and license requirements
- Accessible digital, analog, and communication I/O
- Appropriate HMI, VFD, motor, pneumatic, or motion applications
- Safe voltage architecture and clear protection
- Wiring diagrams, exercises, sample programs, and troubleshooting tasks
- Room for future expansion
- Delivered pricing and a documented support path
Explore VISTON’s PLC training kits, Allen-Bradley PLC trainers, and Siemens PLC trainers. If you share your course level, preferred PLC, number of student stations, input voltage, and learning objectives, request a curriculum-matched configuration.
