Allen-Bradley Micro850 vs CompactLogix for PLC Training
Share
Allen-Bradley Micro850 and CompactLogix controllers can both support effective hands-on PLC training, but they prepare students for different engineering environments. The most important difference is not the physical size of the controller. It is the software workflow, system architecture, and level of industrial integration that the course is designed to teach.
Quick answer
Choose Micro850 when the priority is an affordable introduction to PLC programming, machine control, HMI, VFD, and practical I/O wiring. Choose CompactLogix when the program specifically needs Studio 5000, EtherNet/IP integration, tag-based Logix workflows, distributed systems, and stronger alignment with plants that use the Logix platform.
| Decision factor | Micro850 | CompactLogix |
|---|---|---|
| Engineering software | Connected Components Workbench | Studio 5000 Logix Designer |
| Typical course level | Introductory to intermediate | Intermediate to advanced |
| Best use | Standalone machine and compact automation training | Integrated automation and plant-style Logix training |
| Budget | Usually lower hardware and software entry cost | Higher total platform cost; verify licensing |
| Expansion focus | Local I/O, HMI, drives and compact modules | EtherNet/IP, distributed I/O, drives, motion and larger systems |
Micro850: a practical entry point
Micro850 belongs to the Allen-Bradley Micro800 family and is programmed with Connected Components Workbench (CCW). Rockwell Automation positions CCW as an integrated environment for controller programming, simulation, device configuration, and HMI development. That makes Micro850 useful for courses that need one software environment for compact machine-control exercises.

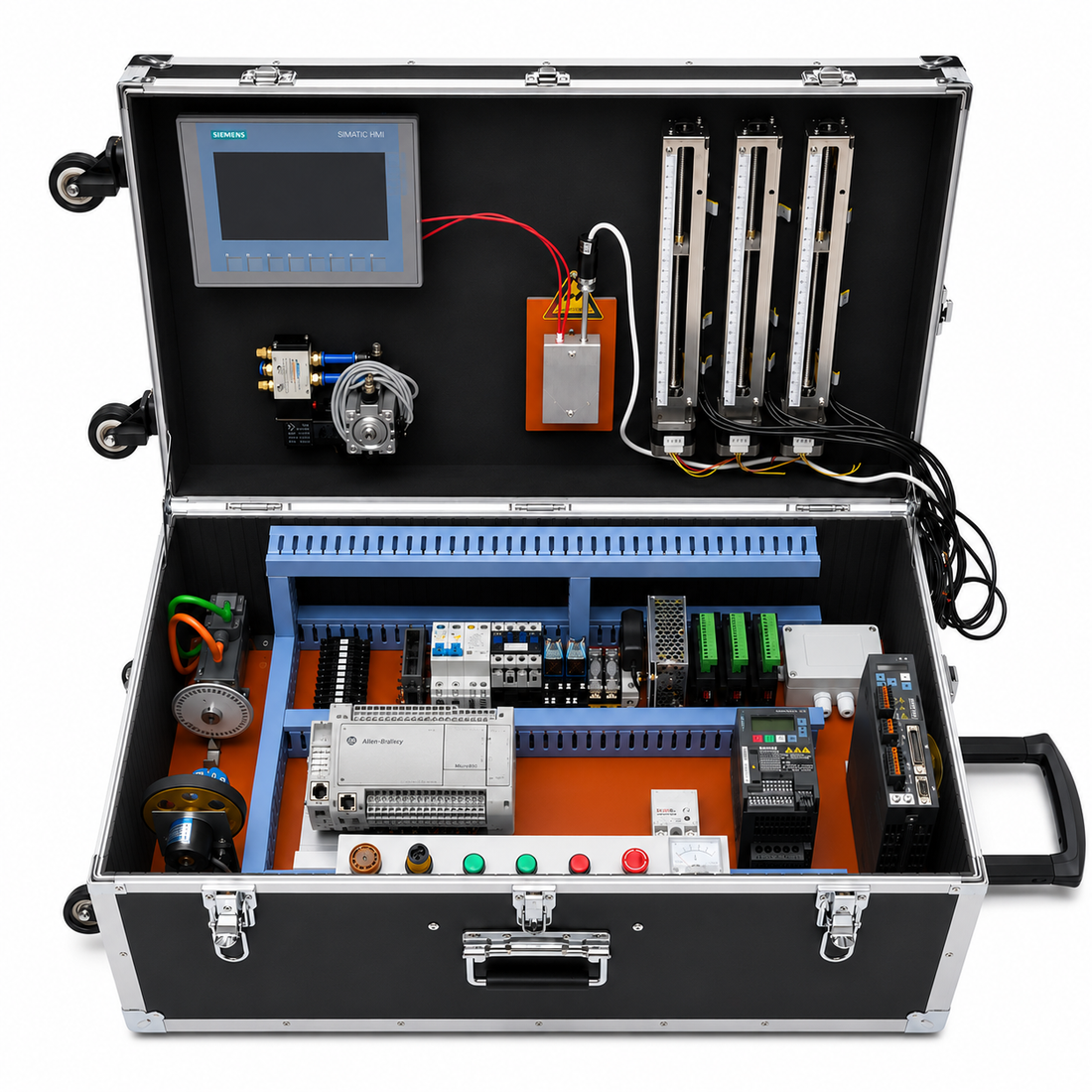

A well-designed Micro850 trainer can cover digital I/O, timers, counters, comparisons, arithmetic, analog signals, relay and contactor circuits, HMI screens, VFD speed control, pneumatic sequences, and troubleshooting. Students can focus on control fundamentals without first learning the larger Studio 5000 project structure.
Micro850 is often the better choice when a school needs more student stations within a fixed budget or when the program serves beginners, high school CTE students, or short-term workforce courses.
CompactLogix: training for the Logix environment
CompactLogix uses Studio 5000 Logix Designer. Rockwell Automation describes Studio 5000 as the common development environment used to configure, program, and maintain CompactLogix control applications. For schools serving manufacturers that standardize on Logix controllers, this software exposure can be a major reason to select CompactLogix.
CompactLogix training is appropriate when students need to work with tag-based programs, controller organization, EtherNet/IP devices, PowerFlex drives, distributed I/O, integrated motion, produced and consumed data, or plant-style troubleshooting workflows.
The CompactLogix family includes multiple generations and catalog numbers. Confirm the exact controller, supported Studio 5000 revision, I/O family, communication ports, and licensing before purchasing a trainer. A modern course should be designed around the actual hardware and software students will use, not simply the CompactLogix name.
Which platform fits each program?
Choose Micro850 when:
- The course begins with PLC fundamentals and electrical wiring.
- Students need a compact trainer with HMI, VFD, sensors, or pneumatics.
- The school wants more stations at a controlled cost.
- Connected Components Workbench matches local employer needs.
- The program emphasizes standalone machines and basic maintenance.
Choose CompactLogix when:
- Studio 5000 experience is an explicit program outcome.
- Local employers use CompactLogix or ControlLogix systems.
- The course covers EtherNet/IP, PowerFlex drives, distributed I/O, or integrated systems.
- Students already understand basic PLC logic and need advanced commissioning practice.
- The laboratory needs a platform that can expand into motion, networking, and plant-level projects.
A two-level laboratory can be the strongest option
Some programs benefit from using Micro850 for introductory stations and CompactLogix for advanced capstone work. Students first learn wiring, logic, HMI, and VFD fundamentals on a compact platform, then transfer those concepts into Studio 5000 and a more integrated system. This avoids using the highest-cost platform for every basic exercise while still giving advanced students relevant Logix experience.
Recommended training components
Regardless of controller choice, require accessible terminals, 24 VDC control power, buttons and indicators, analog signal practice, a motor-control application, network access, clear drawings, and structured troubleshooting exercises. The trainer should help students connect software instructions to real voltage, real field devices, and real faults.
