Pneumatic Training Kit Curriculum and Circuit Experiments

A portable pneumatic training kit can support more than simple component identification. With a structured curriculum, students progress from safe air preparation and manual circuits to electrically actuated valves, sequencing and systematic fault diagnosis. The same kit can serve introductory mechatronics, industrial maintenance and fluid-power courses when experiments are arranged in a clear progression.

Portable pneumatic training kit with cylinders, valves, tubing and control components

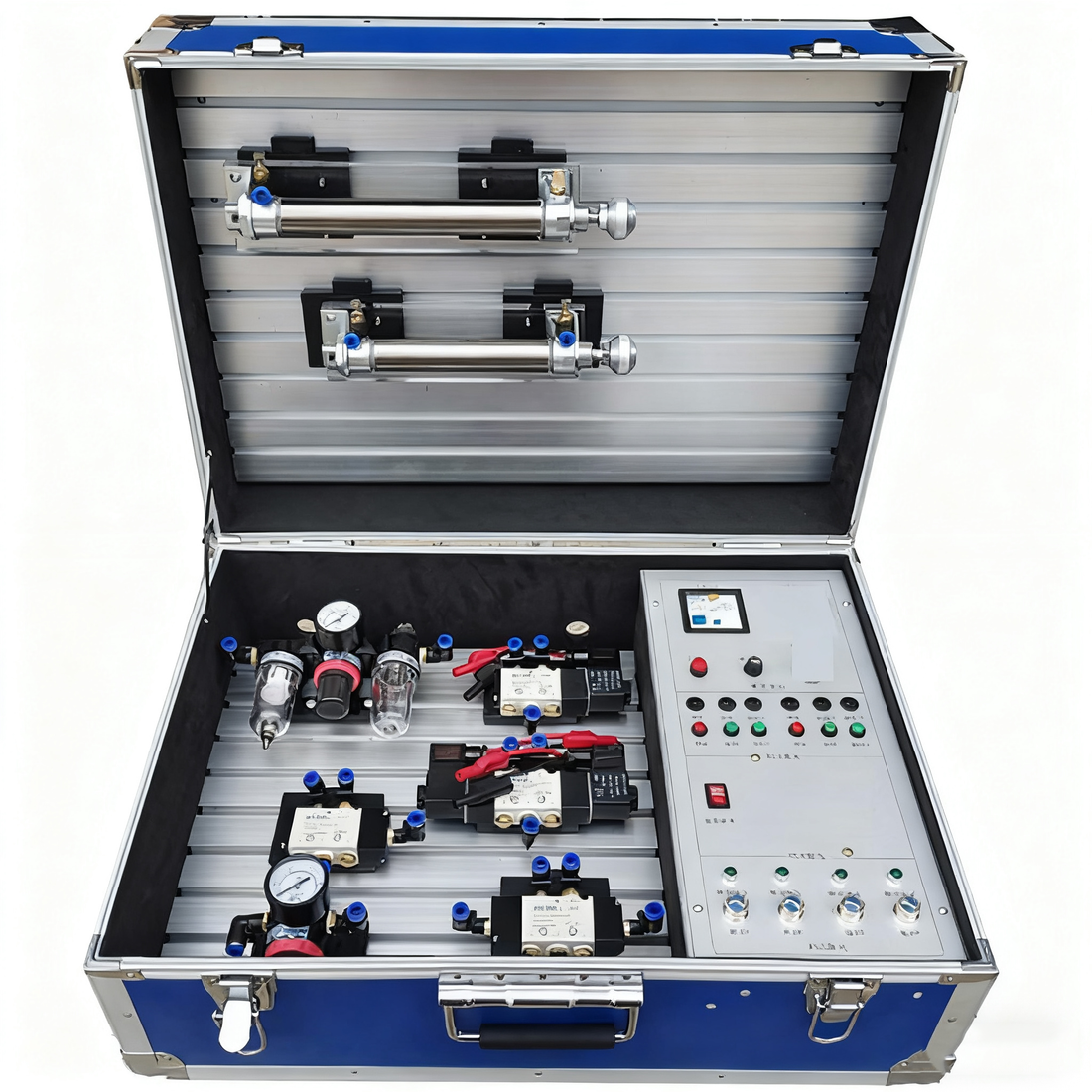

A portable pneumatic trainer lets students assemble, test and troubleshoot circuits on a compact laboratory platform.

Curriculum outcomes

After completing the laboratory sequence, students should be able to:

  • read common pneumatic symbols and relate them to physical components;
  • connect tubing and fittings without damaging ports or creating unsafe hose routing;
  • set working pressure and identify the effect of flow restriction;
  • build and explain single-acting and double-acting cylinder circuits;
  • apply directional, flow-control, pressure-control and quick-exhaust devices;
  • operate solenoid valves from safe electrical control circuits;
  • use a diagram, observations and measurements to isolate faults.

14 pneumatic circuit experiments

Experiment Circuit objective Suggested student deliverable
1. Safety and component identification Identify the air source, regulator, gauge, valves, cylinders, silencers, tubing and fittings. Establish depressurization rules. Component worksheet and pre-use inspection.
2. Air preparation and pressure regulation Connect the supply, set a low starting pressure and observe gauge response under operation. Pressure setting record and explanation of stored energy.
3. Single-acting cylinder control Operate a single-acting cylinder with a 3/2 manual valve and observe spring return. Circuit diagram and port identification.
4. Double-acting cylinder control Extend and retract a double-acting cylinder with a directional valve. Working circuit and sequence description.
5. Meter-in speed control Restrict inlet flow and compare extension/retraction behavior. Time measurements at three flow settings.
6. Meter-out speed control Restrict exhaust flow and compare stability with the meter-in circuit. Comparison table and conclusion.
7. Independent two-direction speed control Adjust extension and retraction speeds separately. Target versus measured cycle time.
8. Quick-exhaust circuit Install a quick-exhaust valve and compare cylinder response. Before/after timing data and device explanation.
9. Secondary pressure regulation Operate part of the circuit at a lower controlled pressure. Pressure map and force-related observation.
10. Manual logic and signal control Use manual valves to create a permissive or two-condition command where component selection permits. Truth table and circuit diagram.
11. Single-solenoid valve control Operate a solenoid directional valve from an electrical command and identify its safe de-energized state. Wiring sketch and functional test.
12. Double-solenoid memory behavior Test a double-solenoid valve and explain what happens when both coils are off. State table and restart-risk discussion.
13. Repeating or two-actuator sequence Build a controlled reciprocating or sequential circuit using the supplied components. Sequence chart and observed cycle.
14. Troubleshooting practical Locate a restriction, leak, reversed connection, pressure error or electrical command fault. Fault log with symptom, test, root cause and correction.

Turn experiments into assessable lessons

Each lab can use the same four-part student record:

  1. Plan: draw the circuit and identify expected valve and cylinder states.
  2. Build: assemble the circuit with the supply isolated and pressure removed.
  3. Test: increase pressure gradually, observe behavior and record measurements.
  4. Explain: describe why the circuit behaved as observed and how a fault would change it.

This structure makes practical work easier to grade and encourages students to reason from the circuit rather than reconnect parts until something moves.

Recommended teaching progression

For an introductory course, complete experiments 1–8 before adding electrical solenoids. For a mechatronics course, use experiments 9–14 to connect fluid power with relays, PLC outputs or sensor-based sequencing. The exact electrical interface depends on the ordered kit and should be confirmed before developing the final course timetable.

What to confirm before purchasing

  • Complete component list and quantities for each student group
  • Air-source arrangement, operating pressure and fitting standard
  • Incoming voltage and plug type for any pump or electrical controls
  • Included valve center conditions and solenoid voltage
  • Number and stroke of cylinders
  • Whether electrical relay or PLC integration is required
  • Required English drawings, manual, experiment sheets and replacement-part list
  • Case size, storage method, bench space and shipping destination
Configuration note: The current portable kit product page shows a representative air-pump and component package. Confirm the exact air source, voltage, plug, components, documents and accessories in the final quotation; photographs do not replace the ordered bill of materials.
