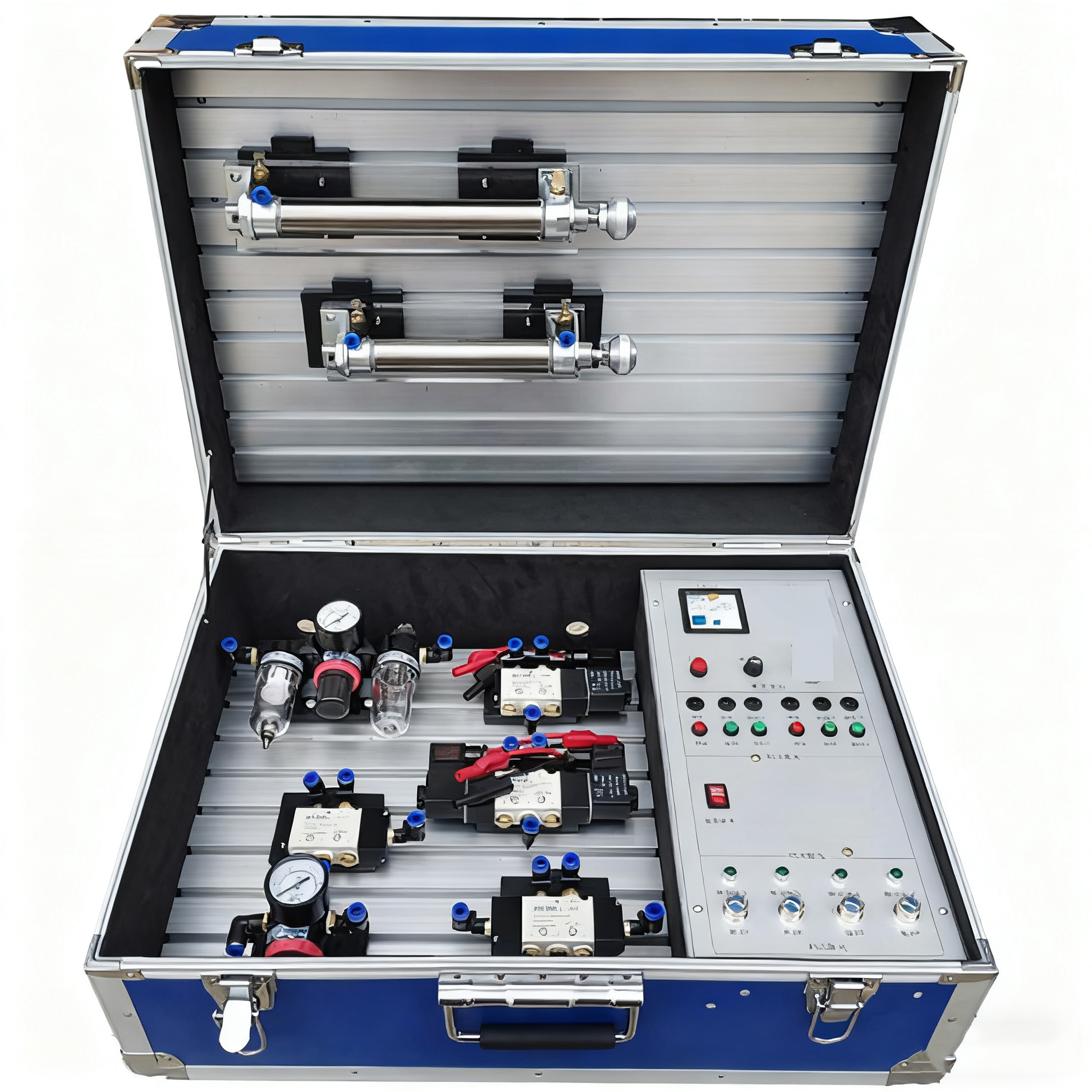

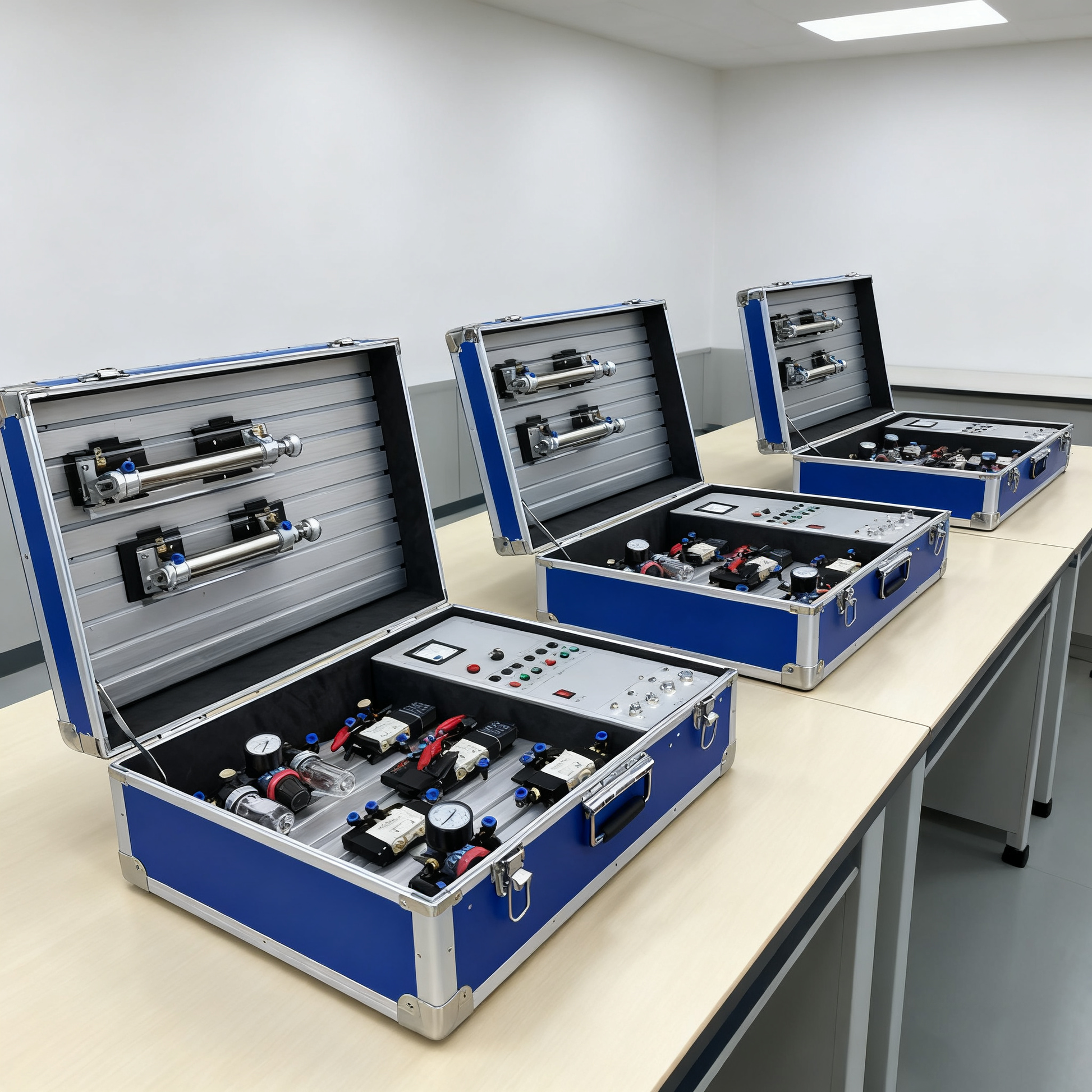

It is a professional, portable training system designed for vocational schools, technical colleges, and industrial skills training. It integrates standard industrial pneumatic components, an electrical control section, and a durable aluminum alloy case, allowing students to independently assemble pneumatic and electrical control circuits.
Key Features

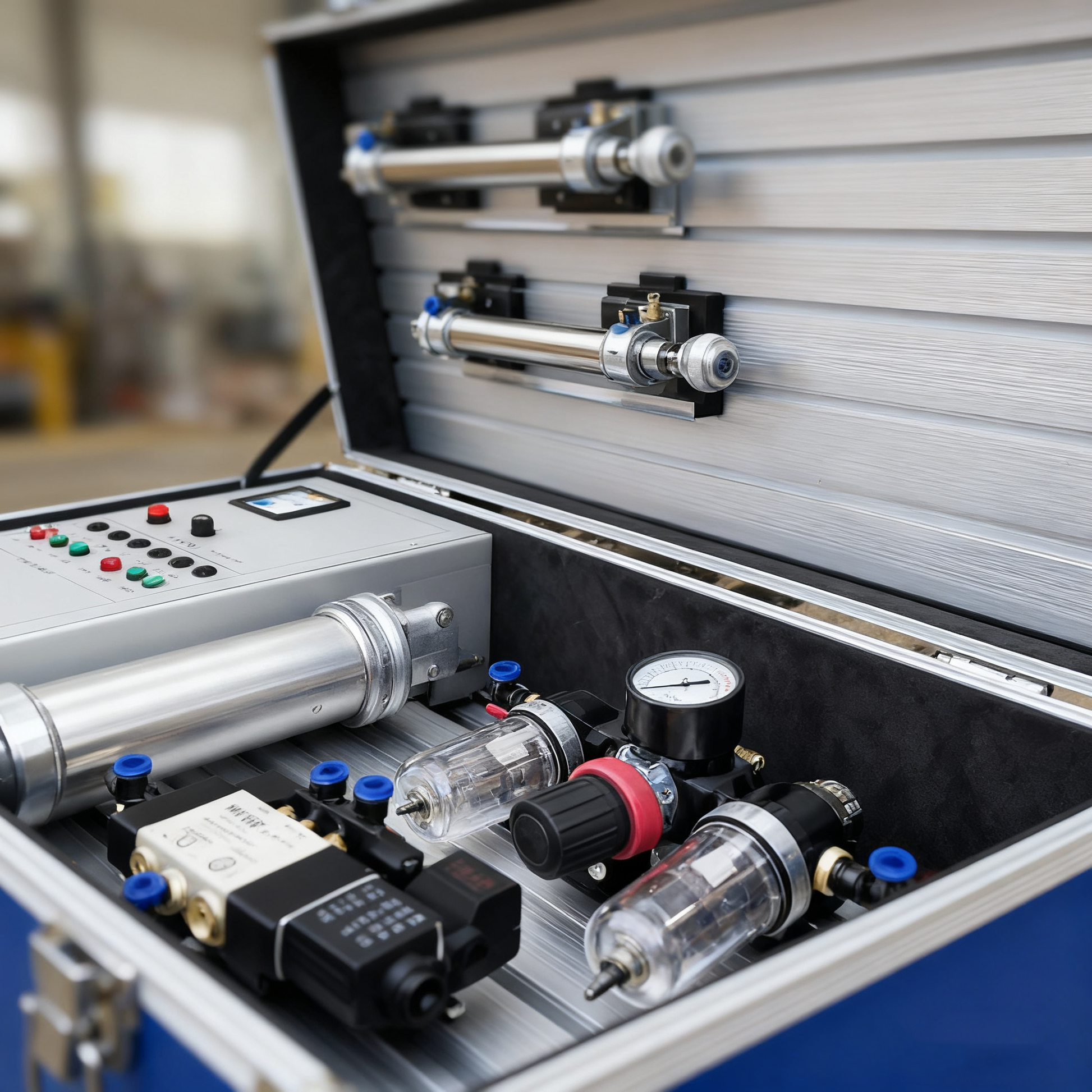

- All‑in‑One Learning Platform – Includes pneumatic training box, cylinders, valves, air source treatment, and electrical control parts.
- Hands‑On Training – Supports component identification, pressure control, direction control, speed control, sequential action, and more.
- Compact & Portable – Lightweight aluminum case for easy classroom demonstrations and transport.
- Safe & Reliable – Meets relevant national safety standards.
Technical Specifications
- Control Voltage: DC 24V
- Operating Temperature: −5°C to 40°C
- Training Box Size: 550 × 395 × 260 mm
- Air Pump Package Size: 555 × 255 × 510 mm
Example Training Circuits
- Single‑acting cylinder direction control
- Double‑acting cylinder direction control
- Single‑acting cylinder speed control
- Double‑acting cylinder one‑way speed control
- Double‑acting cylinder two‑way speed control
- Speed changeover circuit
- Secondary pressure control circuit
- Single‑cylinder continuous reciprocating circuit
- Unloading circuit
- Quick exhaust valve application
Included Components
- Pneumatic training box × 1
- Single‑acting cylinder MA25×100 × 1
- Double‑acting cylinder MA25×100 × 1
- One‑way valve × 1
- Quick exhaust valve × 1
- Pressure reducing valve × 1
- Manual directional valve H210‑08 × 1
- Single solenoid valve (5/2) 4V210‑08 (DC24V) × 1
- Double solenoid valve (5/3) 4V230‑08 (DC24V) × 1
- Throttle valve × 1
- Button travel valve MCV‑3A × 1
- PU6×4 air tube – 5 m
- Fittings × 20
- Air source triplet × 1
- Air pump OTS‑550‑30L × 1
- Instruction manual × 1
Power-Supply Options
The system can be customized for different countries and regions.
Available input options include:
-
220–240V AC, 50/60Hz
-
110–120V AC, 60Hz
-
Internal voltage transformer for North American use
-
Customized plug type according to the destination country
