What Equipment Does a Mechatronics Lab Need?
Share

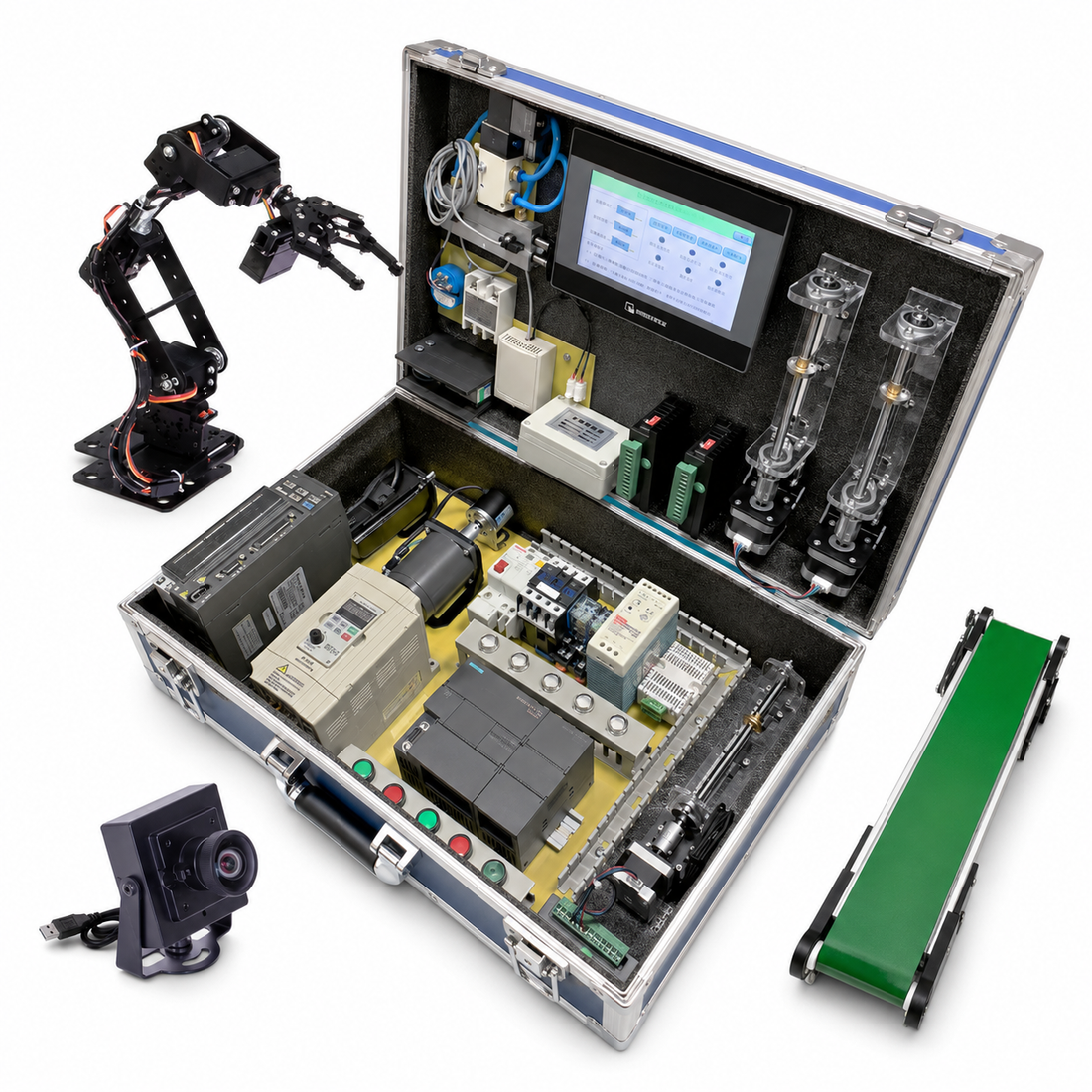

A useful mechatronics laboratory must help students understand how mechanical, electrical, pneumatic, electronic, and software systems interact. Buying one impressive robot does not create a complete lab. Students also need repeated practice with sensors, wiring, motors, PLC logic, actuators, networks, measurement, commissioning, and troubleshooting.
The best equipment plan starts with competencies and then builds a progression from component-level skills to integrated automated systems.
1. PLC and industrial control stations
PLC trainers form the control foundation of most mechatronics laboratories. Each station should provide a real industrial controller, accessible digital I/O, 24 VDC power, buttons, selector switches, indicator lights, relays, protected terminals, and a clear I/O map. Analog signal practice and network access increase the value of the station.
Choose a platform that matches local industry. Common options include Allen-Bradley Micro800 or CompactLogix and Siemens S7-1200 or S7-1500. Software, licensing, and instructor experience should be included in the decision.
2. Electrical and motor-control equipment
Students should connect PLC logic to real electrical loads. A motor-control trainer can include contactors, overload protection, start/stop and forward/reverse circuits, emergency-stop devices, a VFD, and a small guarded motor. This supports hardwired control, PLC control, drive parameter setup, speed references, status monitoring, fault handling, and preventive maintenance.
Use industrial components while keeping student interaction points clearly labeled and protected. The laboratory’s electrical design and work practices must follow applicable institutional and local safety requirements.
3. Pneumatic and hydraulic trainers
Fluid-power equipment teaches energy conversion, directional control, pressure and flow, actuator behavior, sequencing, and troubleshooting. A pneumatic station typically includes cylinders, directional valves, flow controls, pressure regulation, tubing, fittings, sensors, and electro-pneumatic solenoids. Hydraulic training may add pumps, reservoirs, pressure-relief components, transparent lines or modules, and measurement points.
Modular trainers are valuable because students can build, test, modify, and diagnose circuits rather than only watching a fixed demonstration.
4. Sensors, measurement, and instrumentation
A mechatronics technician must verify what the machine is sensing. Include inductive, capacitive, photoelectric, fiber-optic, magnetic, pressure, temperature, level, or flow devices as appropriate to the program. Students should learn sensor selection, wiring, alignment, scaling, noise diagnosis, and signal verification.
Basic meters, safe test points, analog simulators, and clearly documented reference values are as important as the sensors themselves.
5. Motion-control equipment
Stepper and servo systems introduce positioning, speed, acceleration, homing, limits, feedback, and mechanical load behavior. A motion station may combine a PLC, drive, motor, linear slide, limit switches, encoder feedback, and HMI controls.
Motion equipment should be added after students understand basic PLC sequences and safe machine operation. Guard moving mechanisms and provide controlled training tasks.
6. Conveyor and material-handling systems
A compact conveyor trainer connects several mechatronics disciplines in one application. Students can program start/stop logic, detect products with sensors, coordinate pneumatic cylinders, sort parts, count production, create alarms, and diagnose sequence faults.
Conveyors are especially useful as a bridge between individual component exercises and larger smart-factory systems.
7. Robotics and machine vision
Robotic equipment can teach coordinate systems, point teaching, motion paths, digital I/O, gripper control, safety concepts, and PLC handshaking. Machine vision adds lighting, image acquisition, inspection logic, and data exchange. Select robots based on course outcomes, working area, payload, programming environment, safety design, and support—not only the number of axes.
8. Process-control equipment
Programs that include instrumentation or process technology need real-time analog systems. Level, flow, temperature, and pressure trainers let students calibrate sensors, scale signals, operate pumps and valves, create trends and alarms, tune PID loops, and diagnose unstable control.
9. Fault simulation and technical documentation
Troubleshooting should be designed into the laboratory. Useful systems allow instructors to introduce open circuits, incorrect sensor states, failed outputs, communication problems, drive faults, pneumatic leaks, parameter errors, and sequence problems in a controlled way.
Every station should include electrical drawings, pneumatic or hydraulic schematics, I/O lists, component manuals, operating procedures, and structured exercises. Students should document the symptom, test method, root cause, and corrective action.
Build the lab in stages
| Stage | Recommended equipment | Main outcomes |
|---|---|---|
| Foundation | PLC stations, electrical controls, meters and basic pneumatics | Wiring, logic, measurement and safe operation |
| Integration | HMI, VFD, motors, analog I/O, conveyors and motion | Commissioning and multi-technology sequences |
| Advanced | Robotics, machine vision, distributed I/O, process control and smart factory | System integration, diagnostics and capstone projects |
Browse VISTON’s mechatronics training systems, motor-control trainers, pneumatic and hydraulic trainers, robotics platforms, and process-control trainers. To plan stations around your room, enrollment, curriculum, and budget, request a laboratory configuration.
Related training guides
After selecting the equipment, turn it into practical coursework with 20 Hands-On PLC Training Exercises for Students. If the laboratory is focused on technician troubleshooting, motor control, fluid power, and process systems, see How to Build an Industrial Maintenance Training Lab.
