How to Build an Industrial Maintenance Training Lab
Share
An industrial maintenance training lab should reproduce the tasks technicians perform during installation, startup, preventive maintenance, fault diagnosis, and repair—without requiring a full production line. The goal is not to collect disconnected equipment. It is to create a sequence of practical stations where students learn to isolate energy, read drawings, measure signals, replace components, commission devices, and troubleshoot complete systems.
1. Define the maintenance roles the program serves
Begin with employer input and job tasks. A plant maintenance technician may need electrical troubleshooting, motor controls, PLCs, VFDs, pneumatics, hydraulics, mechanical drives, sensors, instrumentation, networking, and documentation. A shorter upskilling course may focus on only PLC diagnostics and motor control.
Turn those tasks into observable competencies. This prevents the laboratory budget from being dominated by impressive equipment that does not support frequent hands-on practice.
2. Make hazardous-energy control part of the curriculum
Maintenance training must address the risks created by unexpected energization, machine movement, electrical power, compressed air, hydraulic pressure, gravity, and stored mechanical energy. In the United States, OSHA’s control-of-hazardous-energy requirements describe employer responsibilities and worker training for applicable servicing and maintenance activities.
A training laboratory should use appropriate disconnects, emergency stops, guarded moving parts, circuit protection, instructor-controlled power, clear energy-source identification, and written operating procedures. The exact program must follow applicable laws, institutional policy, and qualified safety guidance; a trainer by itself does not establish compliance.
3. Build an electrical fundamentals station
Students need repeated practice with schematics, voltage and continuity measurement, switches, relays, contactors, overloads, control transformers or power supplies, fuses, terminal blocks, and common wiring faults. Use clearly labeled industrial components and protected measurement points.
Exercises should include tracing a circuit, identifying where voltage is lost, distinguishing control and power circuits, replacing a component, checking a coil, and documenting the repair.
4. Add motor control and VFD training
Motors and drives are central to industrial maintenance. A motor-control trainer can cover start/stop circuits, forward/reverse control, interlocking, overload protection, three-wire control, VFD parameters, speed references, acceleration and deceleration, status signals, common drive faults, and preventive inspection.
Where possible, let students compare a conventional hardwired circuit with PLC-controlled and network-controlled operation.
5. Provide PLC troubleshooting stations
PLC training for maintenance technicians should emphasize diagnosis as much as programming. Students should be able to interpret an I/O list, locate a field device, monitor logic online, determine why an output is not being commanded, verify the electrical signal, and distinguish a program condition from a hardware fault.
Use accessible terminals, documented addresses, real sensors and loads, and instructor-controlled fault insertion. Include HMI alarms, analog signals, communication loss, and parameter errors as students progress.
6. Include pneumatic and hydraulic systems
Fluid-power stations teach pressure, flow, directional control, actuator sequencing, leaks, restrictions, valve faults, and interaction with electrical controls. Students should read schematics, assemble circuits, adjust flow safely, verify sensor feedback, and diagnose why an actuator is slow, weak, or out of sequence.
7. Add process and instrumentation training
Facilities with water, food, chemical, energy, HVAC, or process operations may require temperature, pressure, flow, and level skills. A process trainer allows students to calibrate sensors, scale analog signals, operate pumps and valves, interpret trends, manage alarms, tune a PID loop, and troubleshoot an unstable process.
8. Design fault simulation into every station
Faults should be controlled, repeatable, and connected to learning outcomes. Examples include:
- Open or loose control wiring
- Incorrect sensor alignment or state
- Blown or removed protective device
- Failed relay, contactor, or output signal
- Incorrect PLC permissive
- VFD parameter or communication fault
- Pneumatic leak or restricted flow
- Incorrect analog scaling
- Network addressing or device connection problem
Require students to use a troubleshooting process: define the symptom, review documentation, identify possible causes, select safe tests, isolate the fault, correct it, and verify normal operation.
Recommended laboratory equipment
| Training area | Core equipment |
|---|---|
| Electrical control | Power supplies, relays, contactors, overloads, terminals, switches, indicators and meters |
| Motor control | VFD, guarded motor, start/stop devices, protection and fault signals |
| PLC and HMI | Industrial controller, accessible I/O, HMI, network port, analog practice and drawings |
| Fluid power | Pneumatic and hydraulic valves, cylinders, pressure and flow components |
| Instrumentation | Level, flow, temperature and pressure sensors with process equipment |
| Integrated systems | Conveyor, motion, robotics or material-handling modules |
| Troubleshooting | Controlled fault insertion, schematics, test points and service documentation |
Start small and expand by competency
A strong first phase can include electrical controls, PLC stations, motor/VFD trainers, and basic pneumatics. Add analog process control, conveyors, servo motion, distributed I/O, and robotics when the foundation courses and instructor capacity are ready. Modular expansion is usually more sustainable than buying a large integrated system before the curriculum is established.

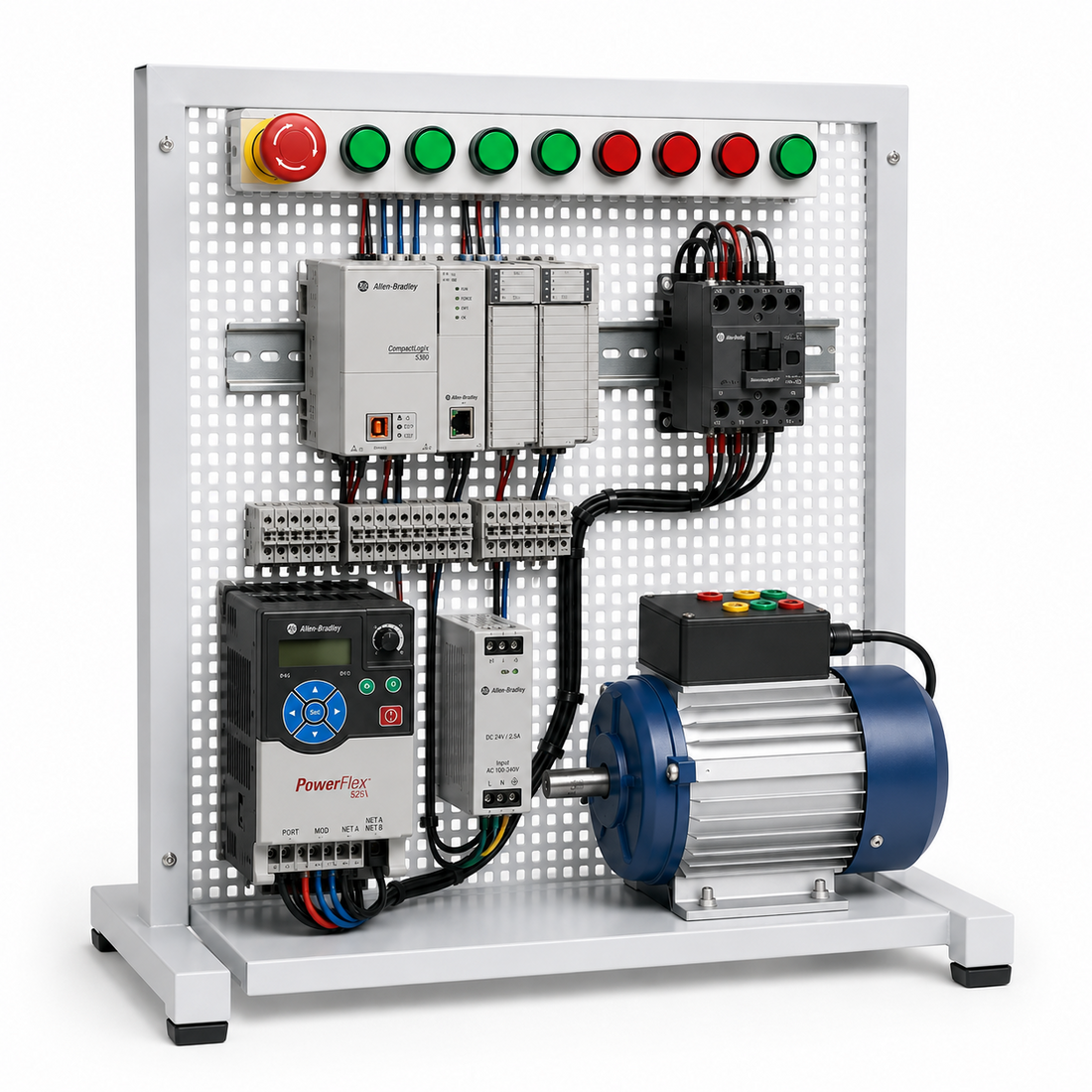

Explore VISTON’s motor-control trainers, PLC training kits, pneumatic and hydraulic trainers, and process-control systems. The CompactLogix and PowerFlex 525 motor-control trainer is designed for Studio 5000, drive, motor, wiring, and troubleshooting practice. Request a lab configuration based on your program, enrollment, preferred PLC, voltage, and budget.
