Advanced PLC Motion Control Trainer with Siemens S7-1200, V90 Servo, V20 VFD, Stepper Motor & HMI

Advanced PLC Motion Control Trainer with Siemens S7-1200, V90 Servo, V20 VFD, Stepper Motor, HMI & Linear Slide System

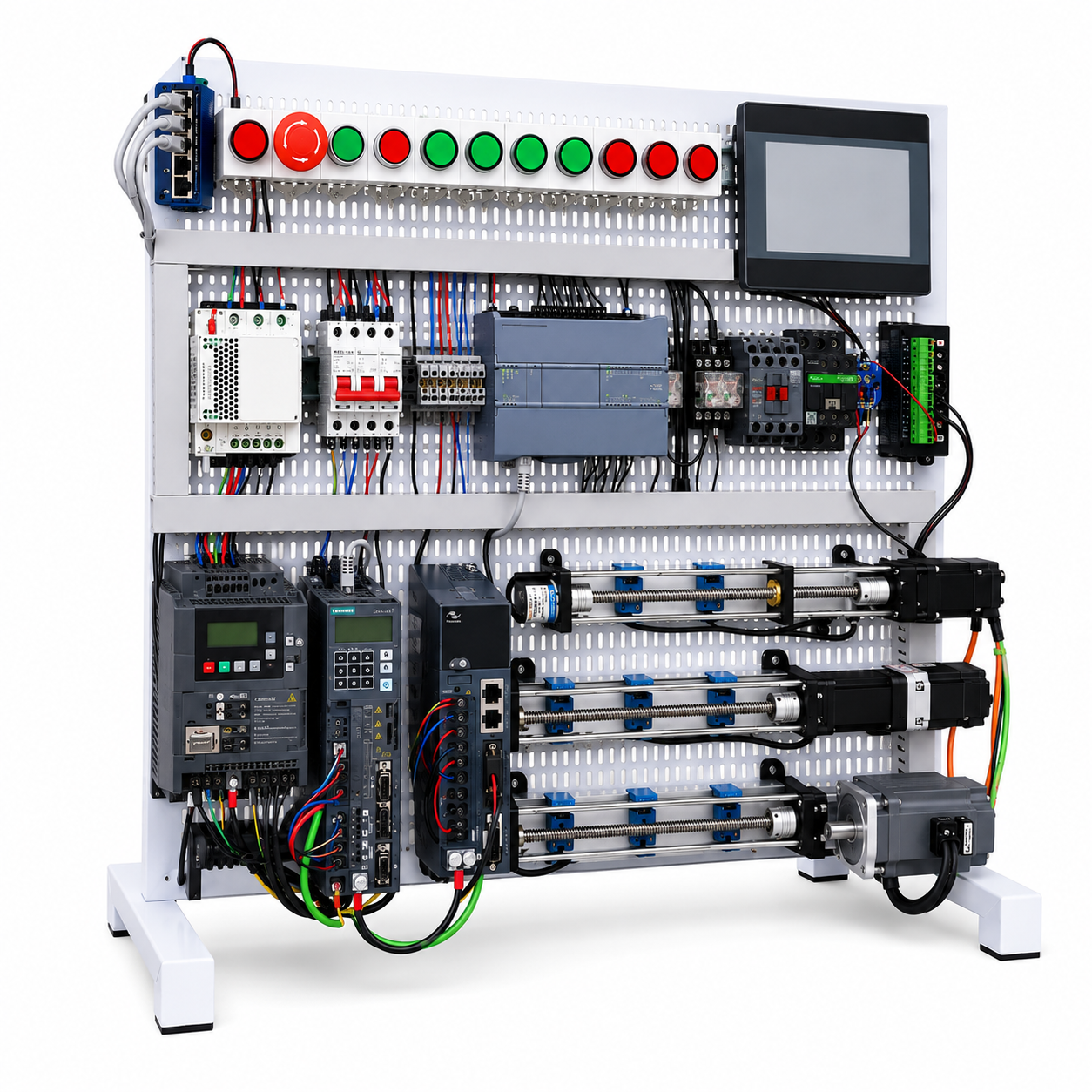

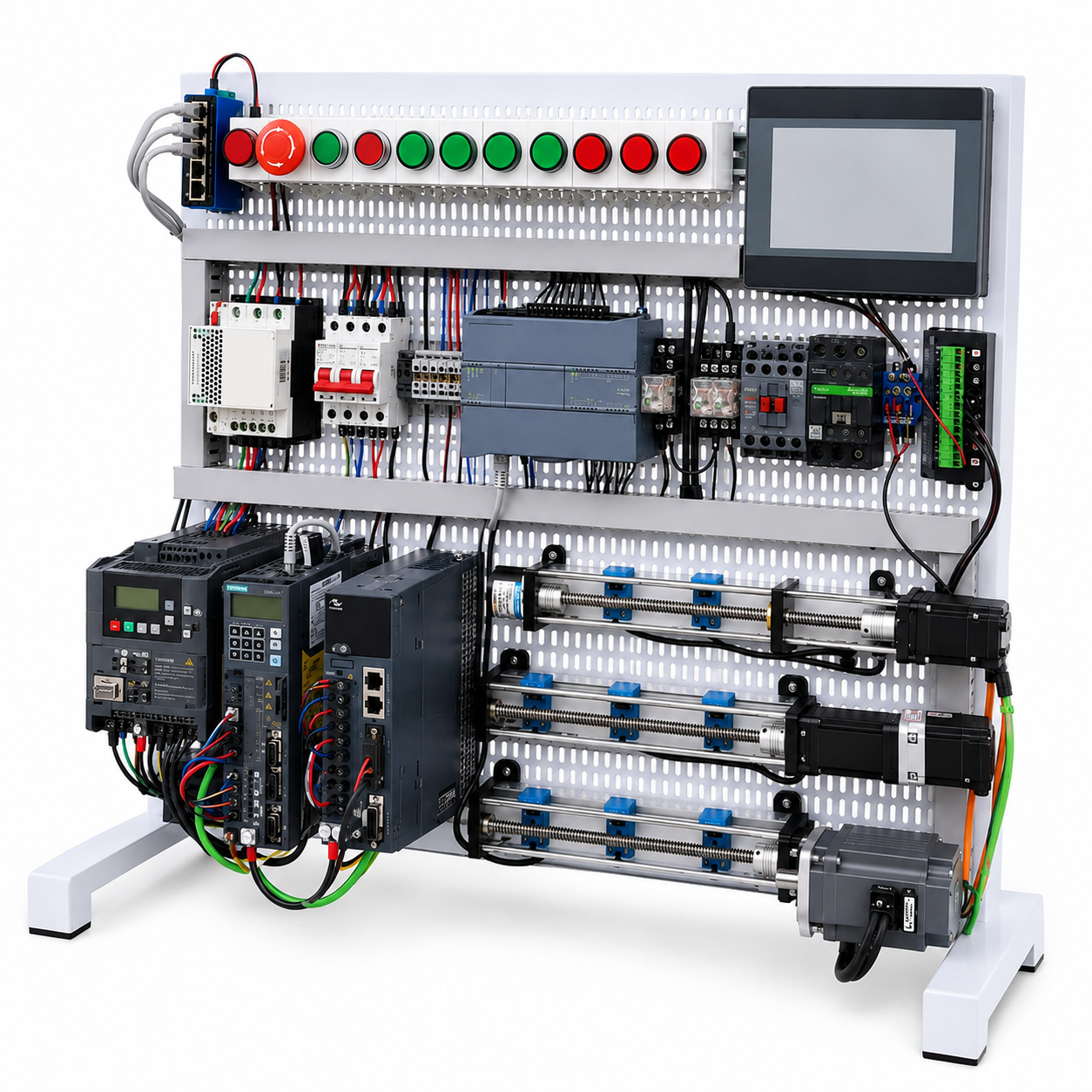

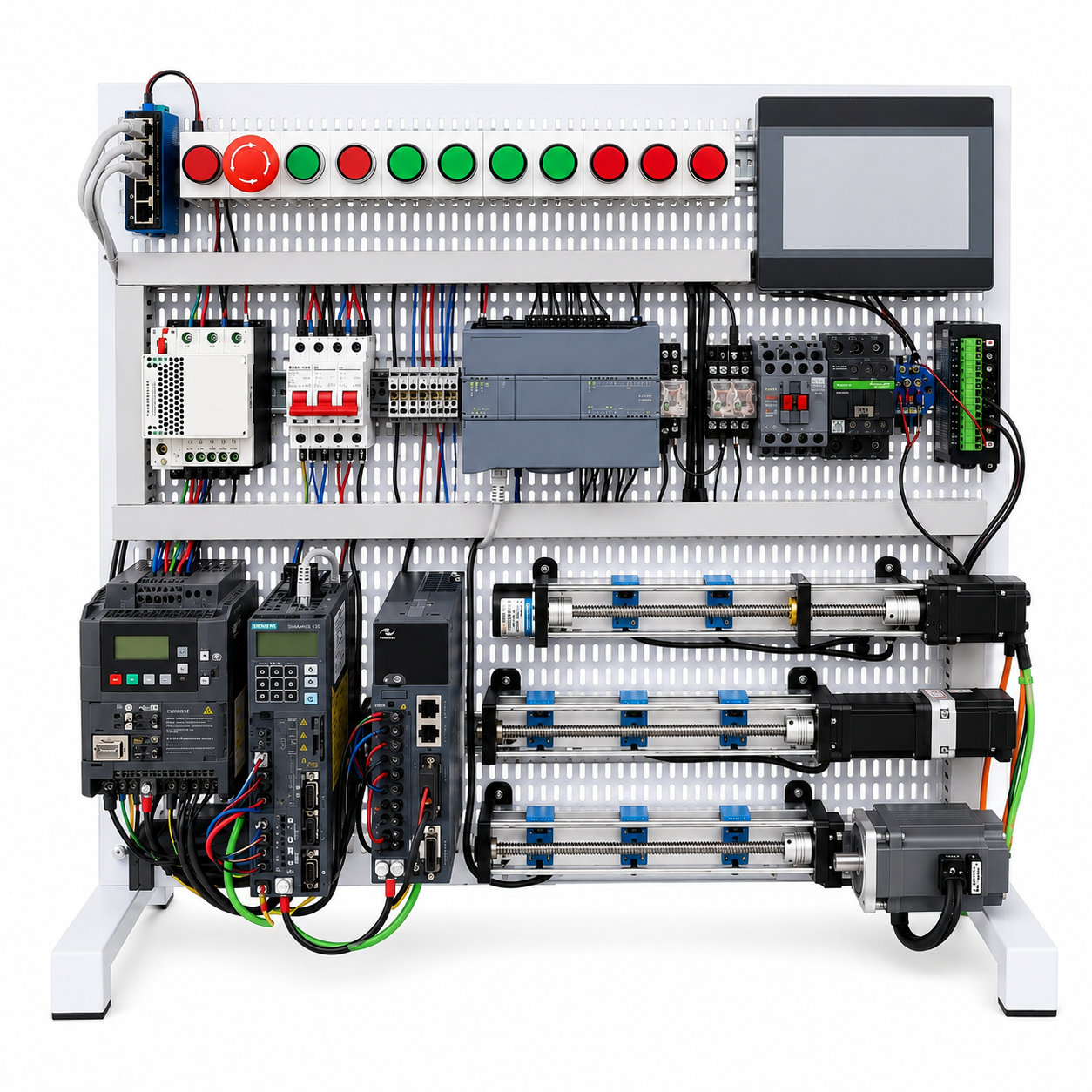

The Advanced PLC Motion Control Trainer is a high-configuration industrial automation training system designed for universities, technical colleges, vocational schools, engineering laboratories, and industrial automation training centers.

Unlike a basic PLC training kit, this system integrates multiple real industrial control modules into one complete training platform, including PLC control, HMI operation, VFD motor speed control, three-phase motor control, servo positioning, stepper motor control, linear slide motion, relay control, contactor circuits, sensor input, and industrial wiring practice.

Built around a Siemens S7-1200 PLC platform, the trainer helps students understand how modern industrial automation systems are designed, wired, programmed, and commissioned. It is suitable for teaching PLC programming, motor control, motion control, mechatronics, electrical control circuits, industrial communication, and troubleshooting.

Key Features

• Siemens S7-1200 PLC control platform

• Touch screen HMI for operation, monitoring, and parameter setting

• Siemens SINAMICS V20 VFD for AC motor speed control

• Three-phase induction motor for real VFD motor control practice

• Siemens V90 servo drive and servo motor for positioning control

• Stepper motor and stepper driver for motion control experiments

• Linear screw slide modules for practical position control training

• Push buttons, indicator lights, and emergency stop

• Relay and contactor control circuits

• Industrial terminal blocks and organized wiring layout

• Compact freestanding training panel for classroom and lab use

• Suitable for PLC, motor control, motion control, and mechatronics education

What Students Can Learn

This trainer allows students to perform hands-on experiments such as:

• PLC digital input and output control

• PLC program writing, downloading, and debugging

• HMI screen operation and parameter setting

• PLC and HMI communication

• VFD parameter setup and motor speed control

• Three-phase motor start, stop, forward, reverse, and speed adjustment

• Servo motor positioning and linear slide control

• Stepper motor direction, speed, and pulse control

• Multi-axis motion control demonstration

• Relay and contactor control circuit wiring

• Emergency stop and safety interlock logic

• Sensor signal acquisition and basic analog/digital control

• Fault diagnosis and troubleshooting

• Complete industrial automation system integration

Training Applications

This system is suitable for the following courses and laboratories:

• PLC Programming

• Industrial Automation

• Mechatronics Engineering

• Motion Control

• Motor Control

• Electrical Engineering

• Factory Automation

• Industrial Maintenance Training

• Automation System Integration

• Vocational and Technical Education

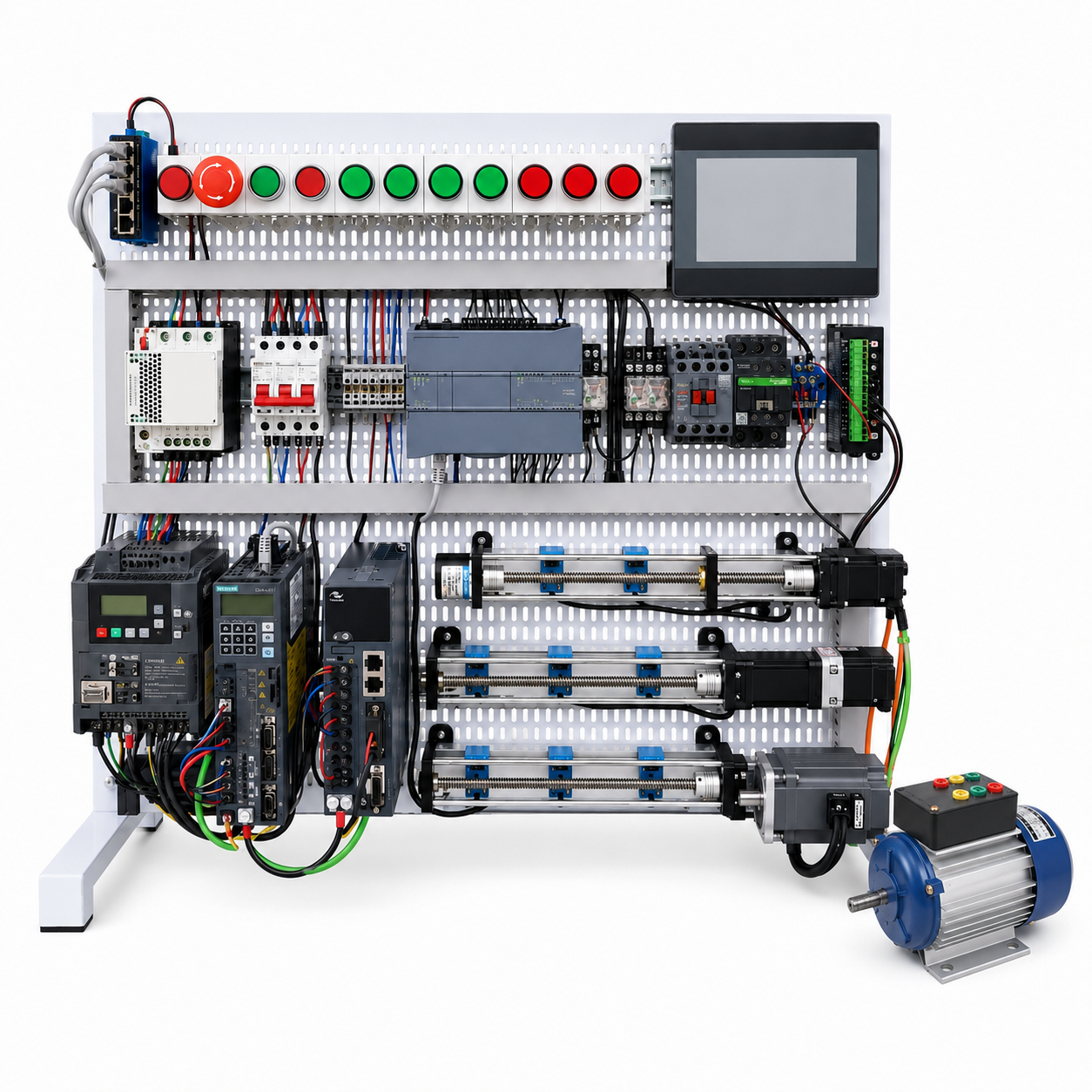

Standard Configuration

• Siemens S7-1200 PLC

• Touch screen HMI

• Siemens SINAMICS V20 variable frequency drive

• Three-phase induction motor

• Siemens V90 servo drive

• Servo motor

• Servo linear slide module

• Stepper motor driver

• Stepper motor

• Linear screw slide module

• Encoder / high-speed counting module

• Temperature sensor module

• AC contactor

• Intermediate relays

• Circuit breaker

• 24V DC power supply

• Push buttons

• Indicator lights

• Emergency stop button

• Terminal blocks

• DIN rail and wiring duct

• Steel training frame

• English wiring diagram

• Sample PLC program

• User manual

Why Choose This Training System?

Many basic PLC trainers only provide simple input and output exercises. This advanced system is designed to simulate real industrial automation applications, allowing students to work with actual motor control, servo positioning, VFD speed control, stepper motion, HMI operation, electrical wiring, and troubleshooting in one platform.

It is especially useful for schools and training centers that want one compact system to cover multiple practical topics instead of purchasing separate PLC, VFD, servo, stepper, and electrical wiring trainers.

Power Supply

Standard version: 220V AC

For North American customers, a 110V / 120V compatible power solution or step-up transformer can be supplied upon request.

Customization Options

We support custom configurations according to your teaching requirements, including:

• Siemens PLC

• Allen-Bradley PLC

• Mitsubishi PLC

• Omron PLC

• Delta PLC

• Schneider Electric PLC

• Custom HMI model

• Custom VFD model

• Custom servo system

• Custom motor power

• Custom voltage

• Custom panel layout

• English training materials

• OEM and university project customization

This advanced PLC motion control trainer is a cost-effective solution for teaching modern industrial automation, motor control, and mechatronics applications in engineering education.
