Product Description

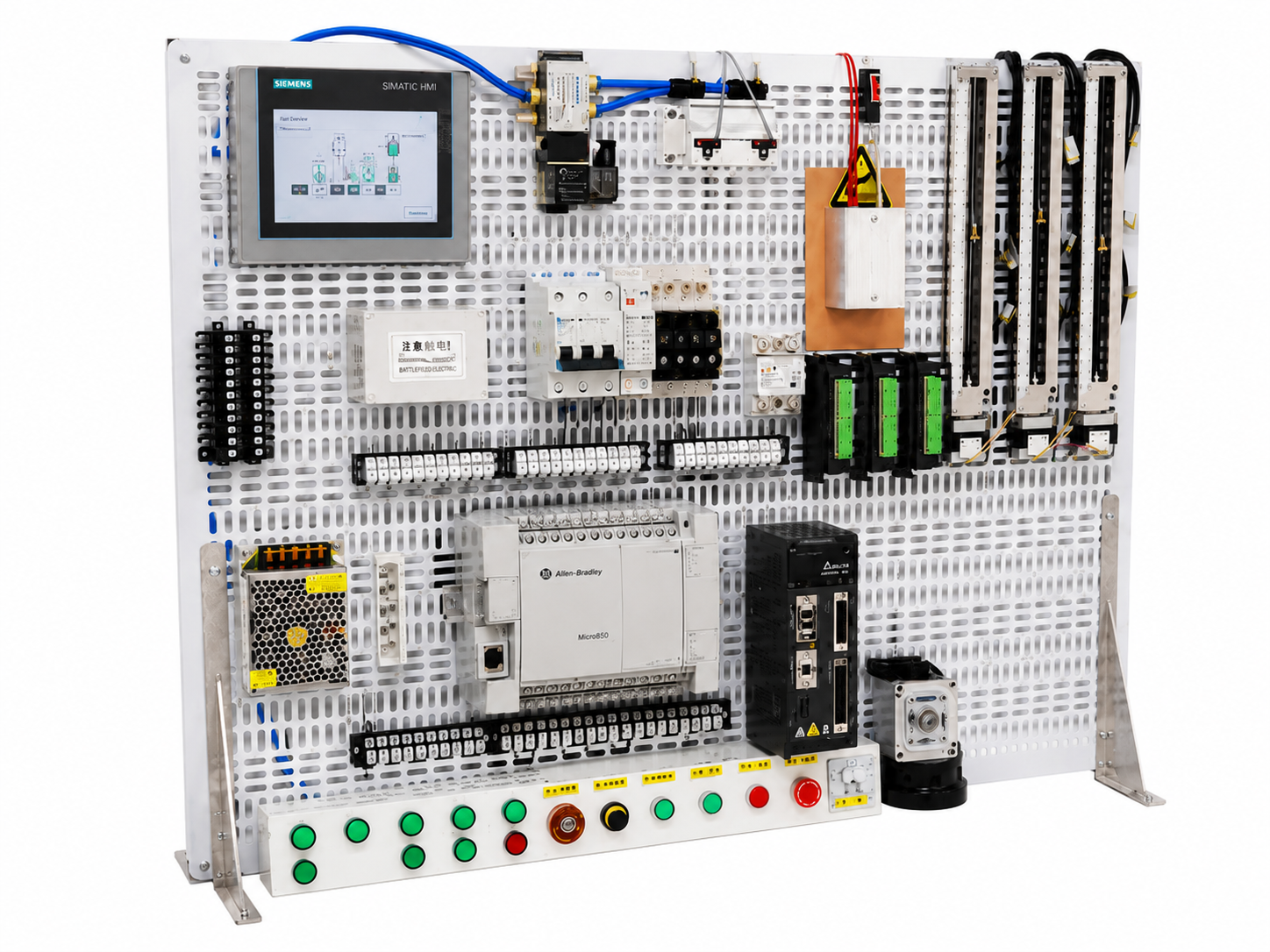

Open-Panel Industrial Automation Training System

This panel-type industrial automation trainer integrates an Allen-Bradley Micro850 PLC, a Siemens KTP700 7-inch HMI, and a Delta 100W AC servo system into one open, clearly arranged training platform.

Designed for universities, technical colleges, vocational schools, engineering laboratories, industrial maintenance centers, and automation training programs, the system provides hands-on practice in PLC programming, HMI visualization, servo positioning, electrical control, industrial communication, and cross-brand system integration.

Unlike a portable suitcase-style trainer, this model uses a large open mounting panel that gives students direct visual access to the controller, touchscreen, servo drive, motor, relays, terminals, push buttons, indicator lamps, and wiring connections.

Core Configuration

Allen-Bradley Micro850 PLC

• Brand: Allen-Bradley / Rockwell Automation

• Series: Micro850

• Recommended model: 2080-L50E-24QBB

• 24V DC control system

• Integrated Ethernet communication

• Digital input and output control

• Pulse output capability for servo control

• Suitable for PLC programming, logic control, sequencing, and motion-control exercises

Siemens KTP700 HMI

• Brand: Siemens

• Series: SIMATIC KTP700

• Display size: 7 inches

• Touchscreen and function-key operation

• Used for system monitoring, parameter adjustment, alarm display, manual operation, and status visualization

• English HMI interface can be customized

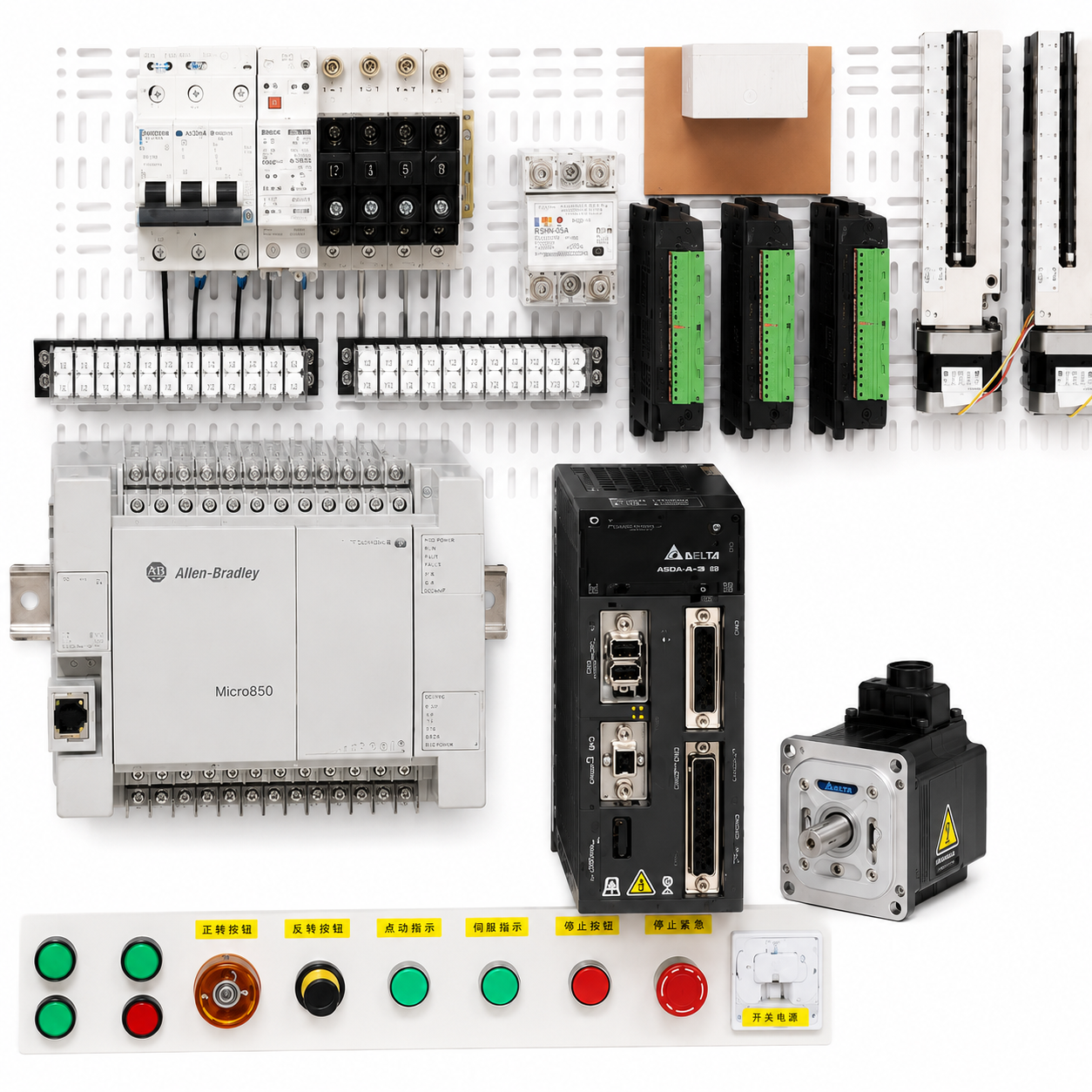

Delta 100W Servo System

• Brand: Delta

• Rated power: 100W

• Includes servo drive and matching servo motor

• Includes motor power cable and encoder cable

• Supports pulse and direction control

• Suitable for positioning, jog control, speed control, homing, forward rotation, and reverse rotation

Main Training Functions

This training panel can be used for practical exercises including:

• Allen-Bradley Micro850 PLC programming

• Digital input and output control

• Logic sequence programming

• Timer and counter applications

• Siemens HMI screen configuration

• PLC and HMI data communication

• Cross-brand automation integration

• Servo enable and alarm reset

• Pulse and direction control

• Servo positioning

• Jog forward and reverse operation

• Homing and origin return

• Position and speed adjustment

• Push-button and indicator-light control

• Relay and contactor control

• Emergency-stop operation

• Terminal wiring practice

• Ethernet communication

• System commissioning

• Fault diagnosis and troubleshooting

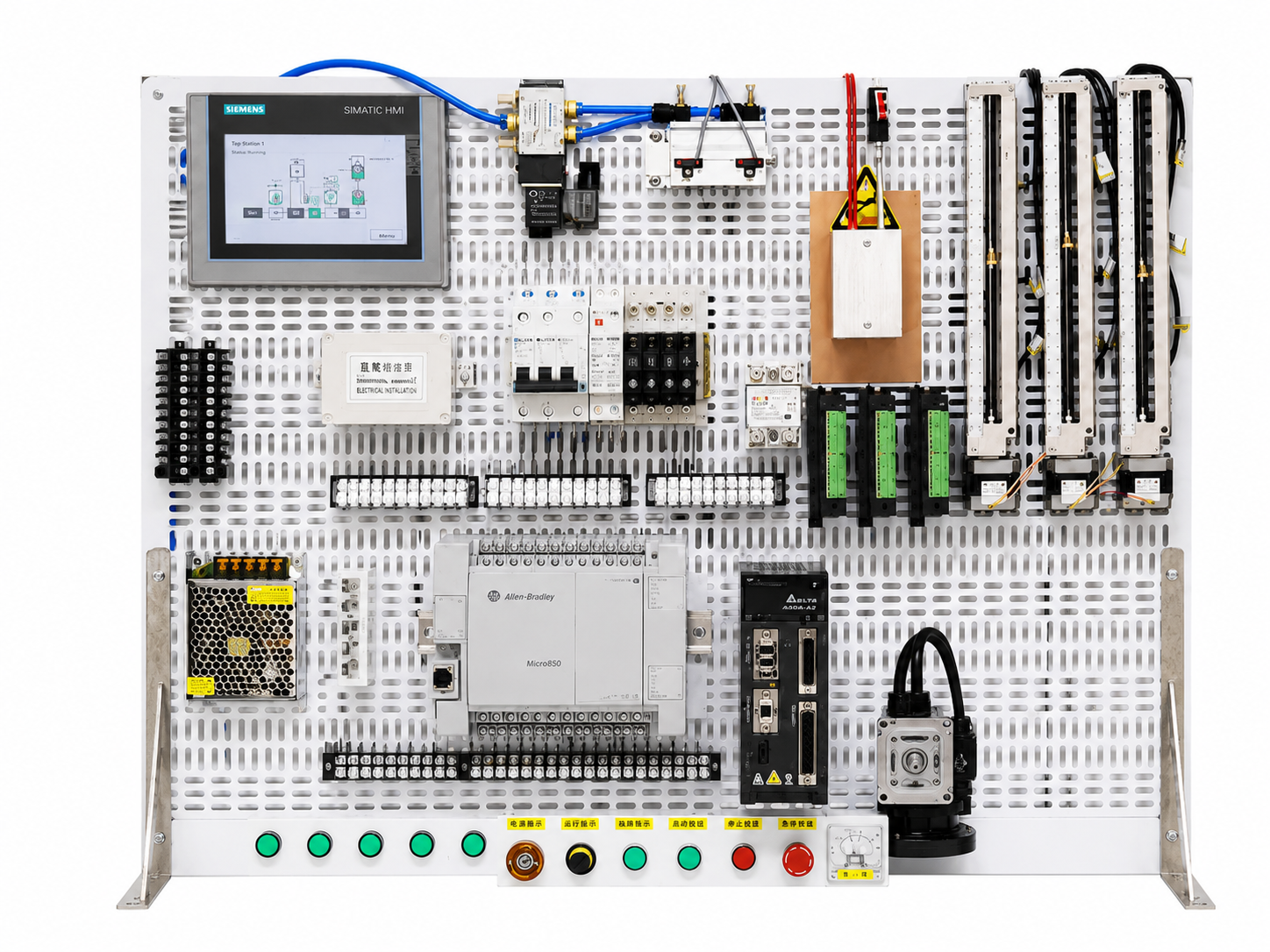

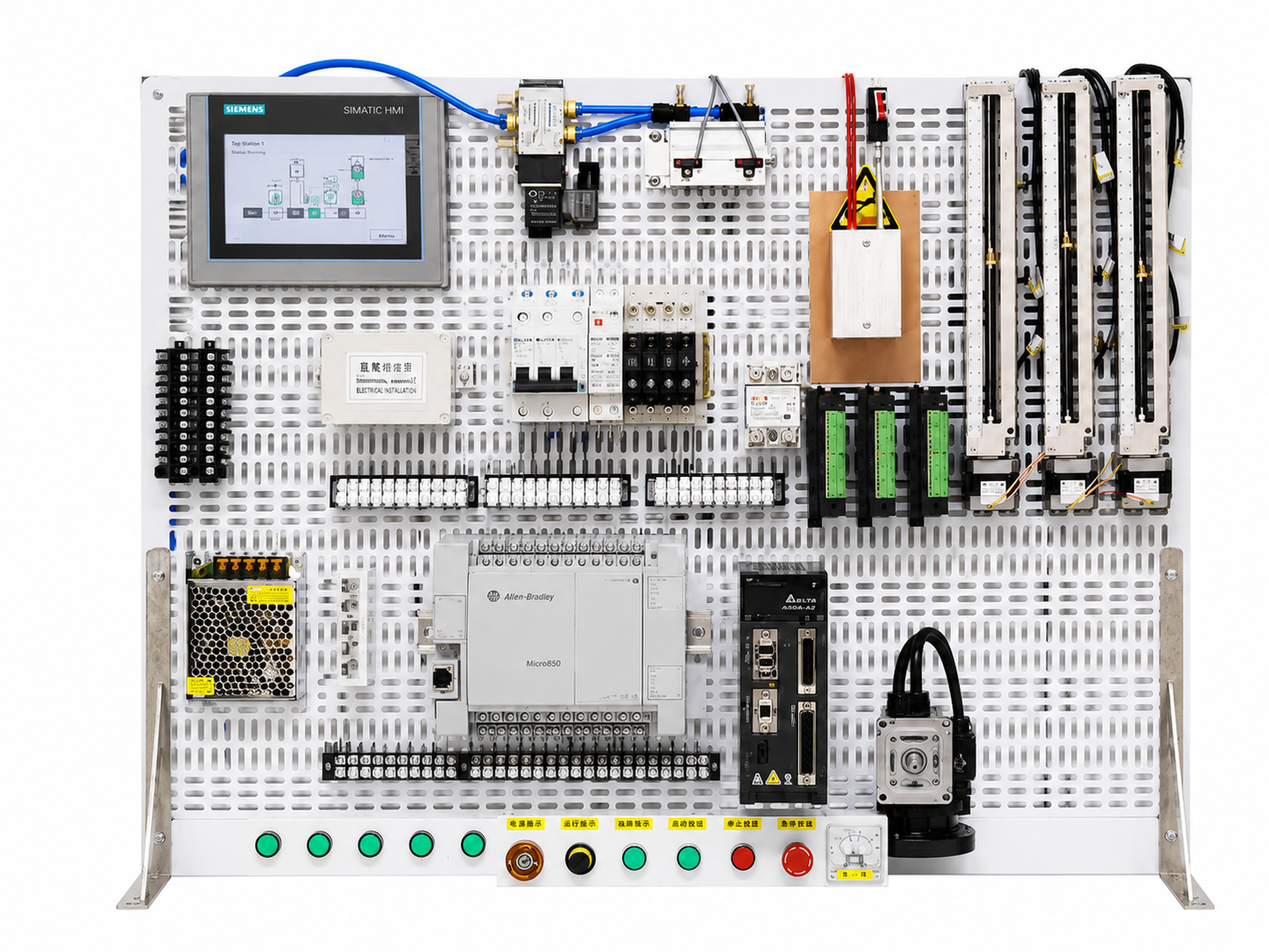

Open-Panel Teaching Design

All major components are installed on a clearly arranged perforated mounting panel.

The open structure allows students to directly observe:

• Component installation positions

• PLC input and output terminals

• HMI communication connections

• Servo drive wiring

• Motor and encoder connections

• Relay and control circuits

• Signal flow between components

• Push-button and indicator-light circuits

• Power distribution and terminal connections

This layout is ideal for classroom demonstrations, laboratory exercises, maintenance training, and equipment troubleshooting.

Cross-Brand Integration Training

The system combines three widely used industrial automation platforms:

• Allen-Bradley PLC control

• Siemens HMI visualization

• Delta servo motion control

Students can learn how to integrate industrial devices from different manufacturers, an important skill for real factory automation, machine building, system retrofitting, and industrial maintenance.

Suitable for

• Universities and engineering colleges

• Technical and vocational schools

• Mechatronics laboratories

• Electrical engineering laboratories

• PLC programming courses

• Industrial automation courses

• Servo and motion-control training

• Industrial maintenance training

• Factory technician development

• Automation system integrator training

• Classroom demonstrations

• Hands-on laboratory exercises

Standard Panel Features

Depending on the selected configuration, the panel may include:

• PLC controller

• Seven-inch HMI touchscreen

• Servo drive and servo motor

• 24V DC power supply

• Industrial Ethernet connection

• Relays and contactors

• Terminal blocks

• Push buttons

• Selector switch

• Indicator lamps

• Emergency-stop button

• Communication cables

• Motor and encoder cables

• Clearly labeled training terminals

Optional Customization

Optional modules and functions include:

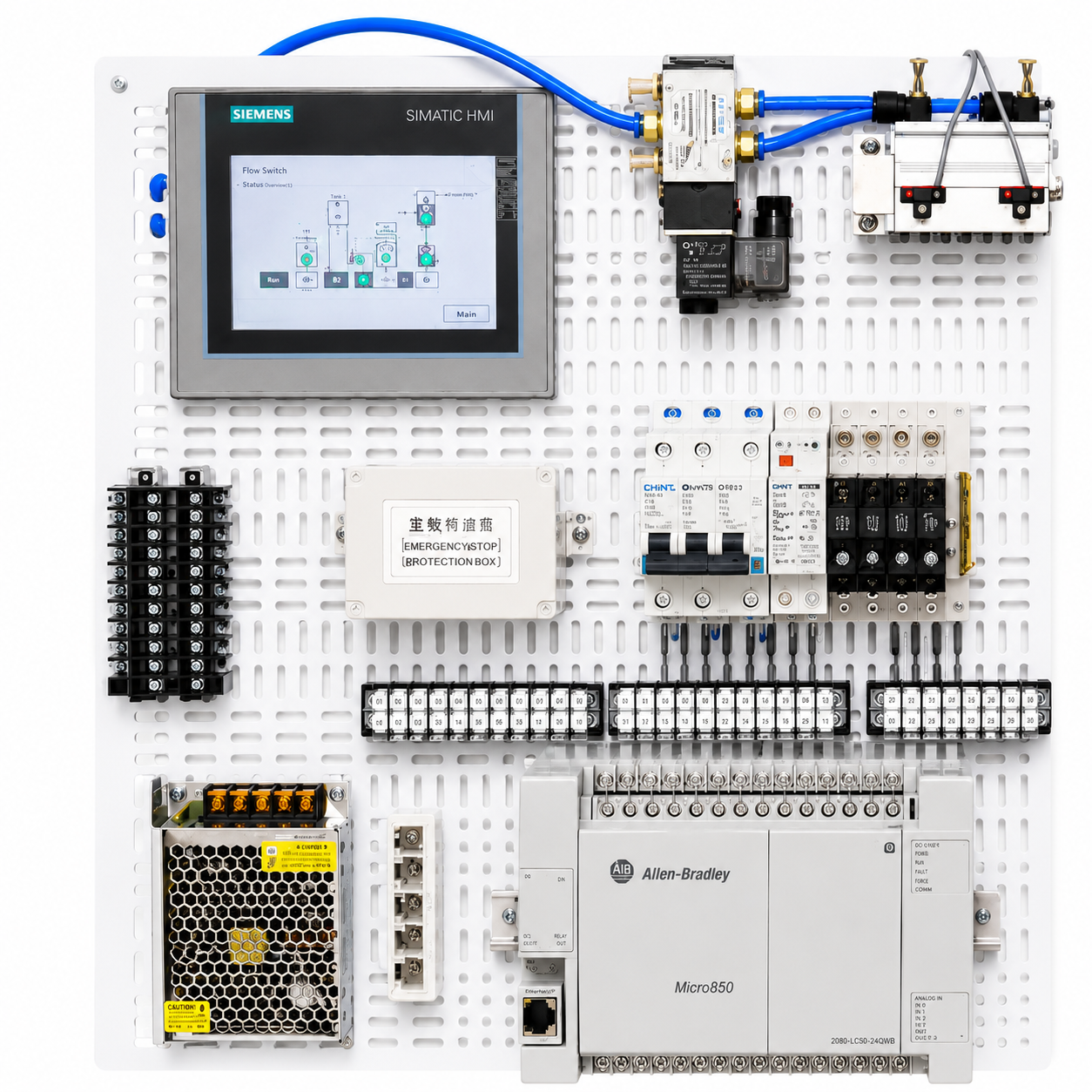

• Siemens MTP700 Unified Basic HMI

• Variable-frequency drive

• Three-phase asynchronous motor

• Industrial Ethernet switch

• Additional digital I/O modules

• Analog input and output modules

• Linear motion slide

• Limit switches

• Home-position sensor

• Photoelectric sensors

• Proximity sensors

• Encoder training module

• Additional servo axes

• Modbus RTU communication

• Fault-simulation switches

• Safety relay

• Light curtain

• Custom panel dimensions

• Custom component layout

• Custom input voltage

• Country-specific power plug

• English laboratory manual

• Customized training exercises

Power-Supply Options

The system can be customized for different countries and regions.

Available input options include:

• 220–240V AC, 50/60Hz

• 110–120V AC, 60Hz

• Internal voltage transformer for North American use

• Customized plug type according to the destination country

Please confirm the required voltage and plug standard before placing an order.

Package Includes

The standard package includes:

• Assembled open-panel training system

• Allen-Bradley Micro850 PLC

• Siemens KTP700 HMI

• Delta 100W servo drive

• Delta 100W servo motor

• Servo power cable

• Encoder cable

• Push buttons and indicator lamps

• Emergency-stop button

• Terminal blocks

• Basic connection cables

• Electrical schematic

• Demonstration program

• Basic technical documentation

A programming computer and licensed engineering software are not included unless specifically listed in the quotation.

Important Ordering Information

This listing is for the open-panel training version.

The portable trolley-case version is available as a separate product.

Component models, training functions, panel layout, voltage, plug type, communication method, and teaching materials can be customized. Please contact us before ordering to confirm the final technical configuration.
