Short Description

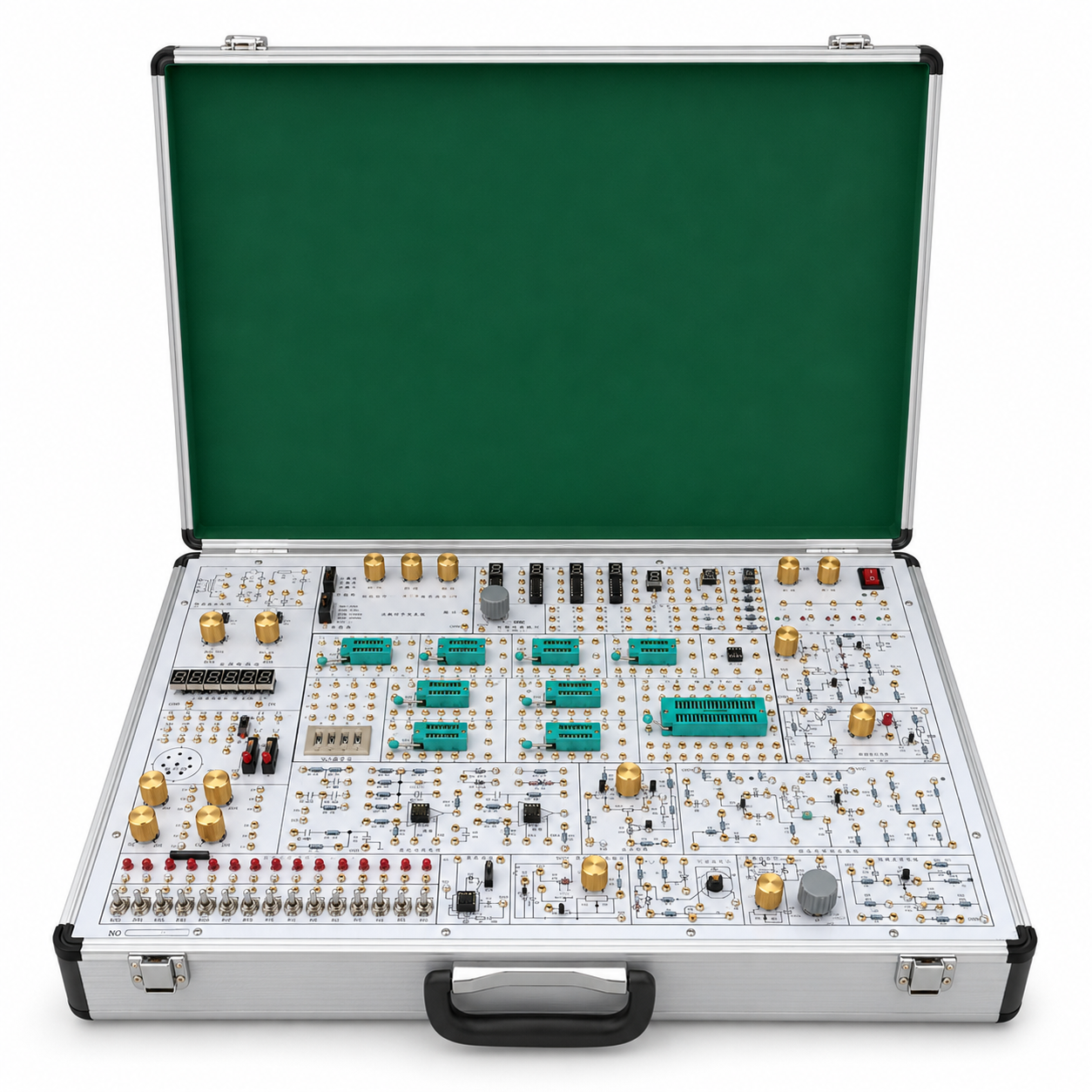

A portable analog and digital electronics trainer designed for hands-on circuit experiments in college, technical school, and workforce training labs. The system includes built-in power supplies, signal sources, function generator, TTL pulse outputs, LED displays, logic switches, IC sockets, open experiment areas, and printed circuit modules for analog and digital electronics education.

Key Features

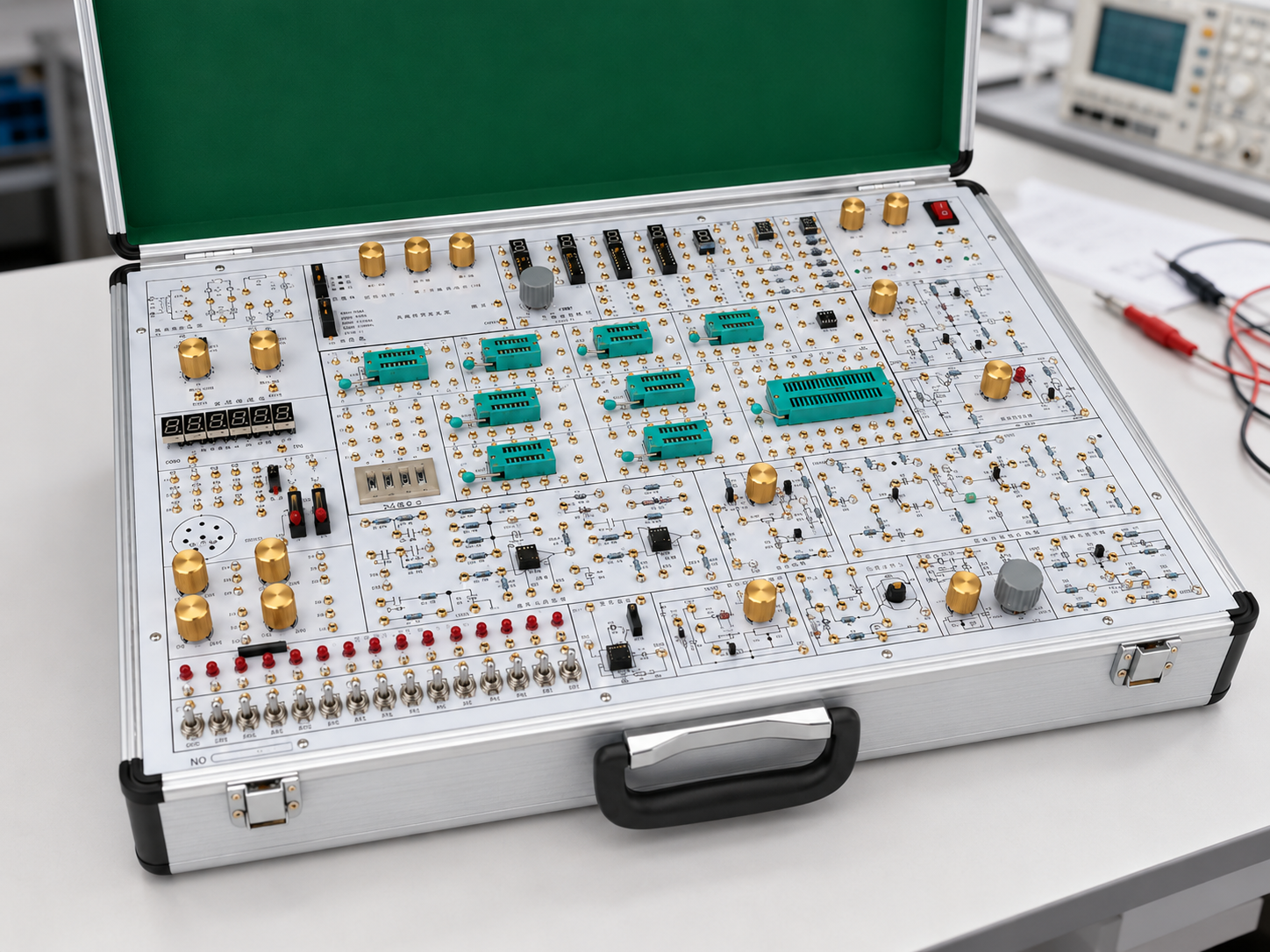

Portable all-in-one electronics lab
Combines analog circuit training, digital logic experiments, signal generation, power supply, measurement modules, and component testing in one compact training case.

Designed for hands-on circuit learning

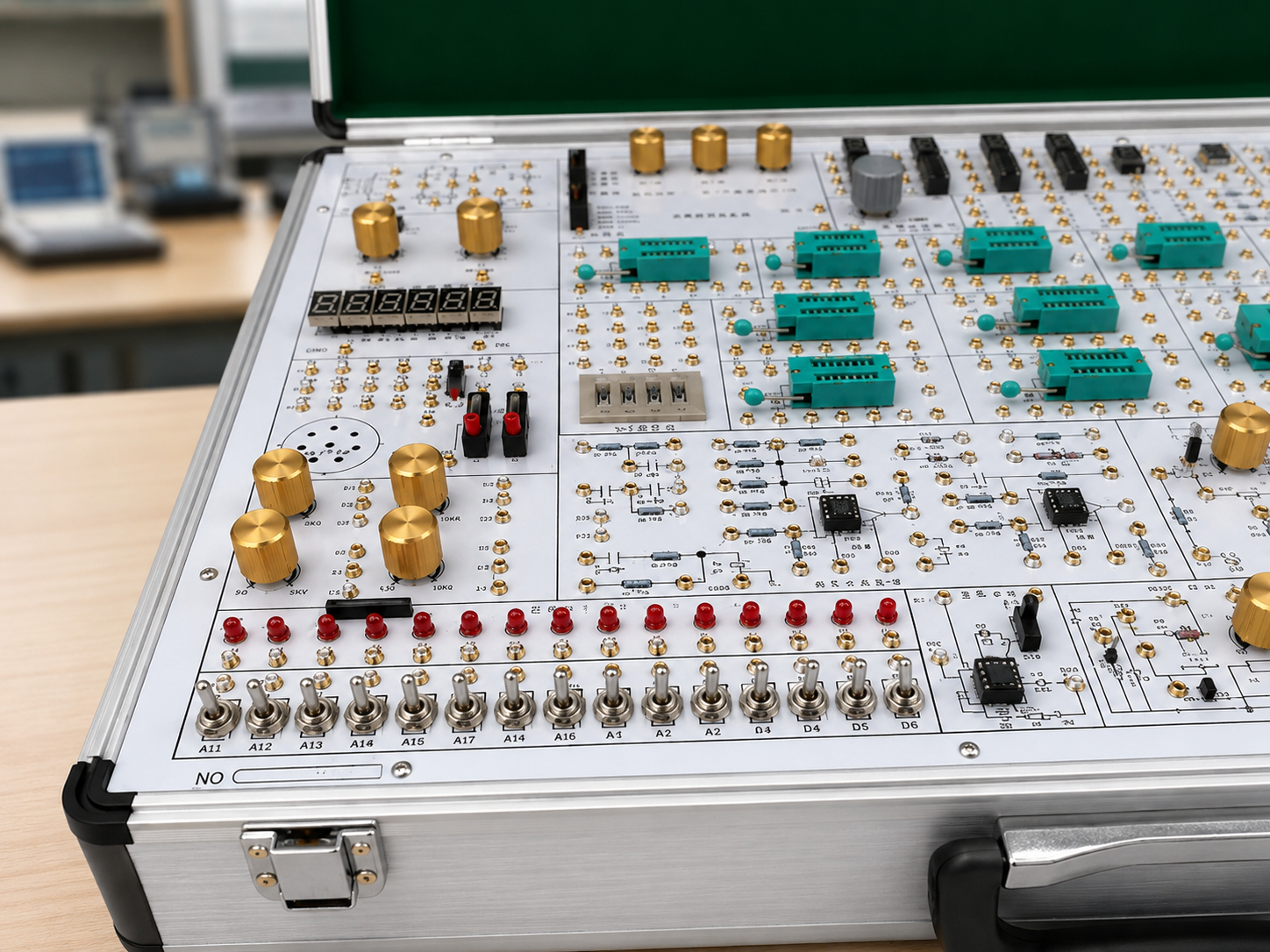

Circuit diagrams are printed directly on the experiment panel, allowing students to connect circuits according to the schematic and understand the relationship between theory and real wiring.

Analog and digital circuit coverage
Supports experiments for amplifiers, op-amps, filters, oscillators, rectifier circuits, voltage regulators, logic gates, flip-flops, counters, registers, decoders, 555 timer circuits, and more.

Built-in signal and pulse sources
Includes adjustable DC signal source, function generator, manual pulse generator, and fixed-frequency TTL pulse source for a wide range of circuit experiments.

Durable portable case design

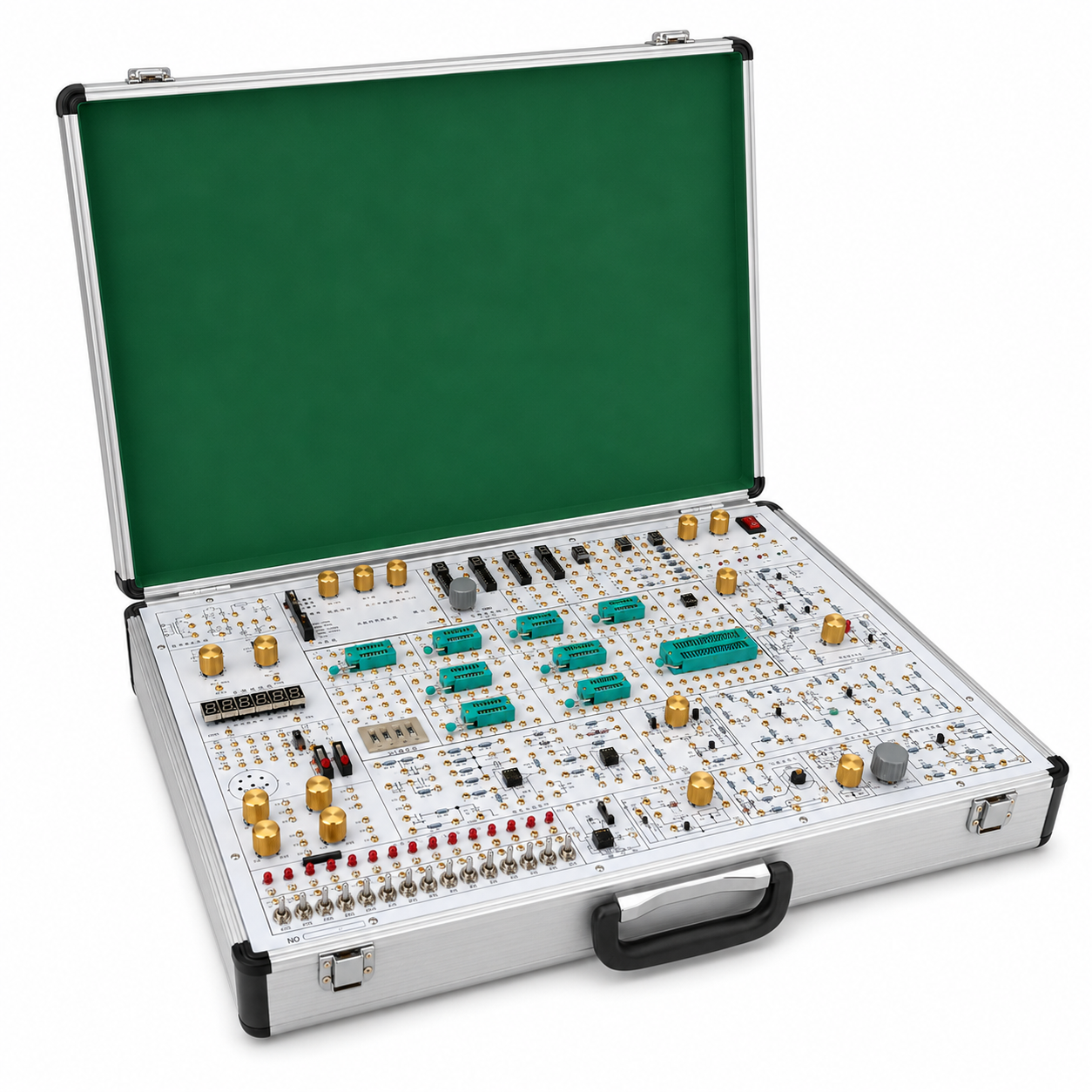

Built in an aluminum alloy carrying case with a fire-resistant experiment panel, making it easy to store, transport, and use in classrooms or training labs.

Expandable experiment platform
Includes IC sockets, component experiment areas, jumper connection points, and modular circuit sections for extended course design and custom experiments.

Technical Specifications

Power Input
Available in 110–120V / 60Hz for the U.S. market
Optional 220V / 50Hz version available

DC Power Outputs

• DC +5V, ≥1A

• DC ±12V, ≥0.2A

• Adjustable DC -5V to -12V, ≥0.2A

• Adjustable DC +5V to +27V, ≥0.2A

• Over-current protection with automatic recovery

AC Output

• AC 7.5V × 2, ≥0.15A

DC Signal Source

• Dual-channel adjustable DC signal source

• -0.5V to +0.5V range

• -5V to +5V range

Function Generator

• Frequency range: 2Hz–90kHz

• Four frequency ranges

• Square wave output: 0–20V

• Triangle wave output: 0–15V

• Sine wave output: 0–10V

Pulse Source

• Manual single-pulse circuits: 2 groups

• TTL level output

• Fixed TTL pulse outputs: 1Hz, 10Hz, 100Hz, 1kHz, 10kHz, 100kHz, 500kHz, 1MHz, 5MHz, 10MHz

Digital Display and Logic Modules

• 4-digit seven-segment LED display

• 2-digit seven-segment LED display with segment access

• 12 logic level input switches

• 12 logic level indicators

• BCD code signal output module

• 4-digit digital frequency counter, 0–1MHz measurement range

Experiment Area

• Open component experiment area

• IC sockets and locked sockets included

• Supports resistors, capacitors, diodes, transistors, op-amps, regulators, integrated circuits, and other components

Case Size

• Approx. 520 × 420 × 100 mm

Example Lab Experiments

Analog Electronics Experiments

• Electronic instrument operation and component testing

• Diode and transistor parameter measurement

• Single-stage amplifier circuit

• Two-stage amplifier circuit

• Negative feedback amplifier

• Emitter follower circuit

• Differential amplifier circuit

• Operational amplifier parameter testing

• Inverting and non-inverting amplifier circuits

• Summing amplifier and proportional operation circuit

• Integrator and differentiator circuits

• Waveform generator circuit

• Active filter circuit

• Voltage comparator circuit

• RC sine wave oscillator

• LC oscillator circuit

• Integrated power amplifier

• Rectifier and filter circuit

• Series voltage regulator circuit

• Adjustable voltage regulator circuit

• Current-to-voltage and voltage-to-current conversion

• Voltage-to-frequency conversion circuit

• Complementary symmetrical power amplifier

• Waveform conversion circuit

• Comprehensive op-amp design and debugging project

Digital Electronics Experiments

• Logic gate function testing

• Combinational logic circuit experiments

• Half-adder and full-adder experiments

• Logic operation circuit experiments

• R-S, D, and JK flip-flop experiments

• Tri-state output and latch circuit experiments

• Sequential logic circuit testing

• Counter and register experiments

• Decoder and data selector experiments

• Waveform generator and monostable trigger experiments

• 555 timer circuit experiments

Practical Skills Training

• Electronic component identification and testing

• Resistor, capacitor, inductor, transistor, and IC testing

• Basic soldering and desoldering training

• SMT assembly introduction

• Multimeter and oscilloscope operation

• Low-frequency signal source usage

• Simple amplifier project

• Regulated power supply project

• Digital clock project

• Sound and light alarm project

• Dimming lamp project

Package Includes

• Portable analog and digital electronics trainer kit

• Jumper connection wires

• Experiment guide manual

• Component kit for experiments

• Power cable

• Carrying case

Applications

This trainer is ideal for:

• College electronics laboratories

• Electrical engineering technology programs

• Mechatronics foundation courses

• Vocational and technical schools

• Workforce training centers

• STEM and engineering education

• Circuit theory and troubleshooting practice

• Analog electronics and digital logic courses
