Mitsubishi FX1N PLC Training Experiment Box – Custom Siemens S7-1200 / Allen-Bradley Micro820 PLC Teaching Kit Available

Portable PLC Training Kit / Programmable Controller Experiment Box

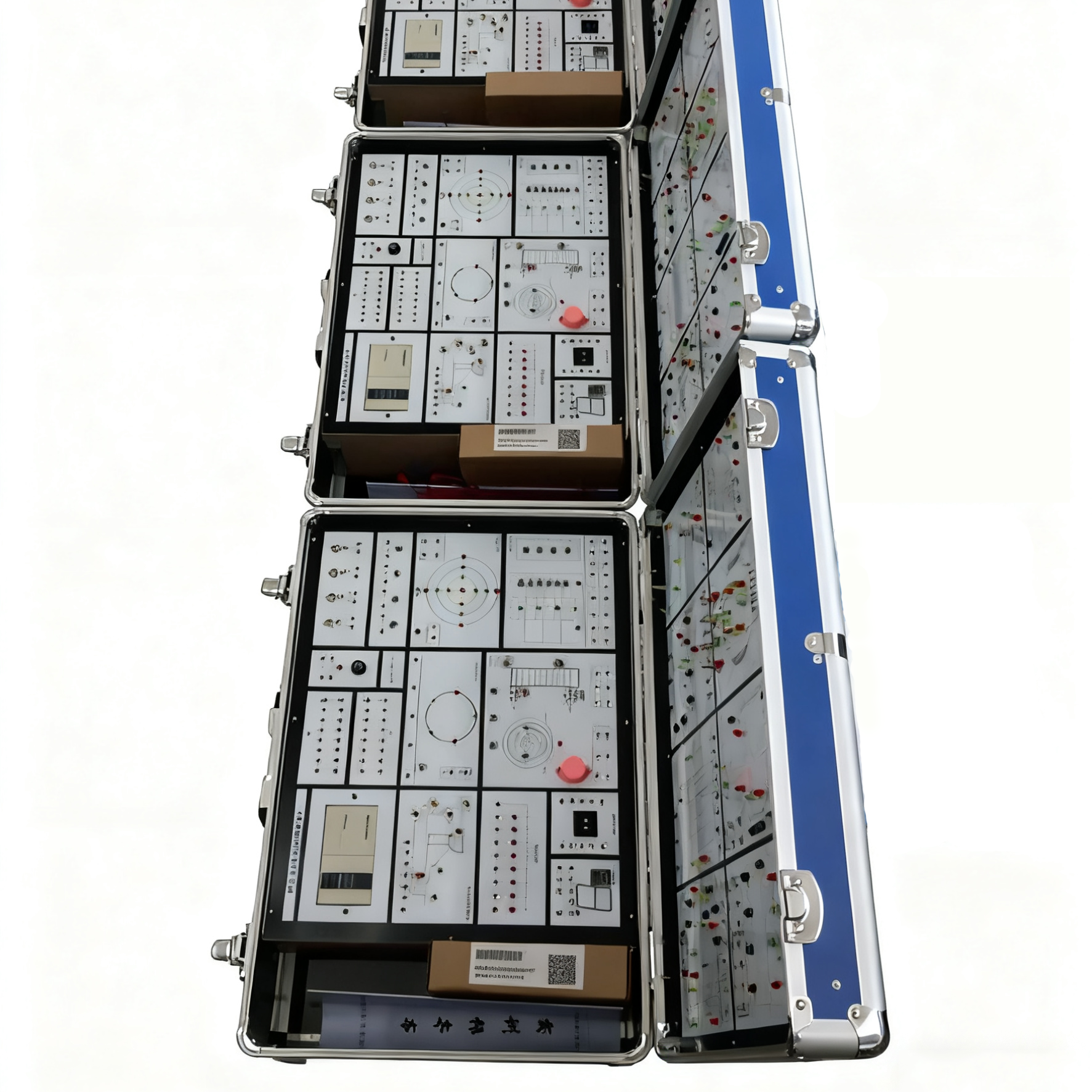

This portable PLC training experiment box is designed for PLC programming education, electrical control training, and industrial automation teaching. The standard model shown in the pictures is equipped with a Mitsubishi FX1N-24MR PLC, making it suitable for basic PLC instruction learning, wiring practice, control logic training, and comprehensive automation experiments.

The experiment box integrates multiple training modules into one compact panel. Compared with traditional PLC training benches, this suitcase-style design is more compact, portable, and convenient for classroom teaching, laboratory use, and technical training. The system reserves input terminals, output terminals, and common terminals, allowing students to complete wiring, programming, debugging, and signal testing independently.

The PLC host and experiment modules adopt a separated design, which makes the system easier to maintain, replace, and upgrade. Different PLC brands and models can also be customized according to the teaching requirements of universities, technical colleges, vocational schools, and industrial training centers.

Standard Configuration

• PLC: Mitsubishi FX1N-24MR

• Input power: AC 220V, 50Hz

• Working temperature: -10°C to 55°C

• Relative humidity: less than 85% at 25°C

• Programming cable included

• Experiment connection cables included

• Power cable included

• PLC experiment software included

• Sample programs included

• Experiment guidebook included

Training Contents

This PLC experiment box supports basic PLC instruction training and practical control application experiments. It is suitable for step-by-step teaching from basic PLC programming to integrated automation control.

The training contents include:

• Basic instruction experiments

• Timer and counter instruction experiments

• Shift register instruction experiments

• Set, reset and pulse instruction experiments

• Jump instruction experiments

• Common function instruction experiments

• Input and output wiring practice

• Control logic programming

• PLC troubleshooting and debugging practice

Available Experiment Projects

Students can complete the following practical PLC control experiments:

• Tower light control

• Traffic light automatic control

• Five-phase stepper motor simulation

• Liquid mixing automatic control

• Water tower level control

• Mechanical arm automatic control

• LED digital display control

• Automatic feeding control

• Automatic washing machine control

• Four-floor elevator control

• Mail sorting control

• Electroplating automatic control

• Automatic forming control

• Motor control

Custom PLC Options

The standard model uses Mitsubishi FX1N-24MR PLC, but we can also customize different PLC teaching experiment boxes according to customer requirements.

Available PLC customization options include, but are not limited to:

• Siemens S7-1200 PLC

• Allen-Bradley Micro820 PLC

• Allen-Bradley Micro850 PLC

• Mitsubishi FX Series PLC

• Omron PLC

• Delta PLC

• Other PLC brands commonly used by universities and technical training centers

The input power can also be customized for different countries and regions, including:

• 110V / 120V / 220V / 230V

• 50Hz / 60Hz

• Customized power plug

• Transformer or power adapter if required

This product is suitable for PLC programming courses, electrical automation laboratories, mechatronics training, vocational education, industrial control teaching, and engineering practice training.
