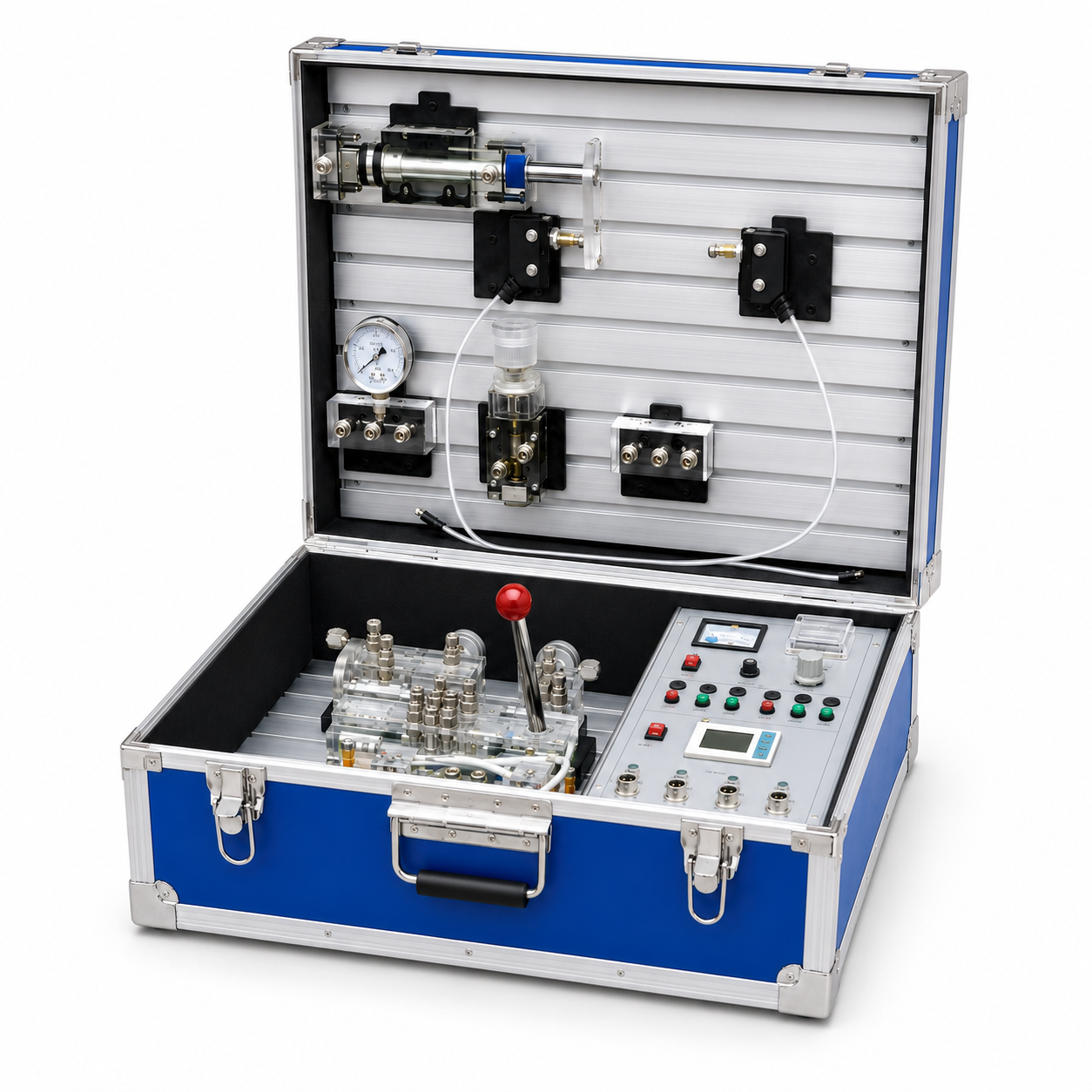

Portable Transparent Hydraulic PLC Training Kit

Hydraulic Transmission Teaching & Demonstration System for Technical Education

The Portable Transparent Hydraulic PLC Training Kit is a compact, self-contained training system designed for teaching hydraulic transmission, fluid power principles, and basic hydraulic control circuits.

This trainer is suitable for vocational schools, technical colleges, community colleges, engineering training centers, and mechatronics programs. It allows instructors and students to demonstrate, build, observe, and understand fundamental hydraulic circuits including pressure control, flow control, directional control, throttle speed control, and PLC-assisted control operations.

With transparent hydraulic components and red hydraulic oil, the internal valve movement and oil flow path can be clearly observed during operation. This makes hydraulic principles easier to explain, easier to understand, and more engaging for hands-on classroom training.

Key Features

Transparent Components for Visual Learning

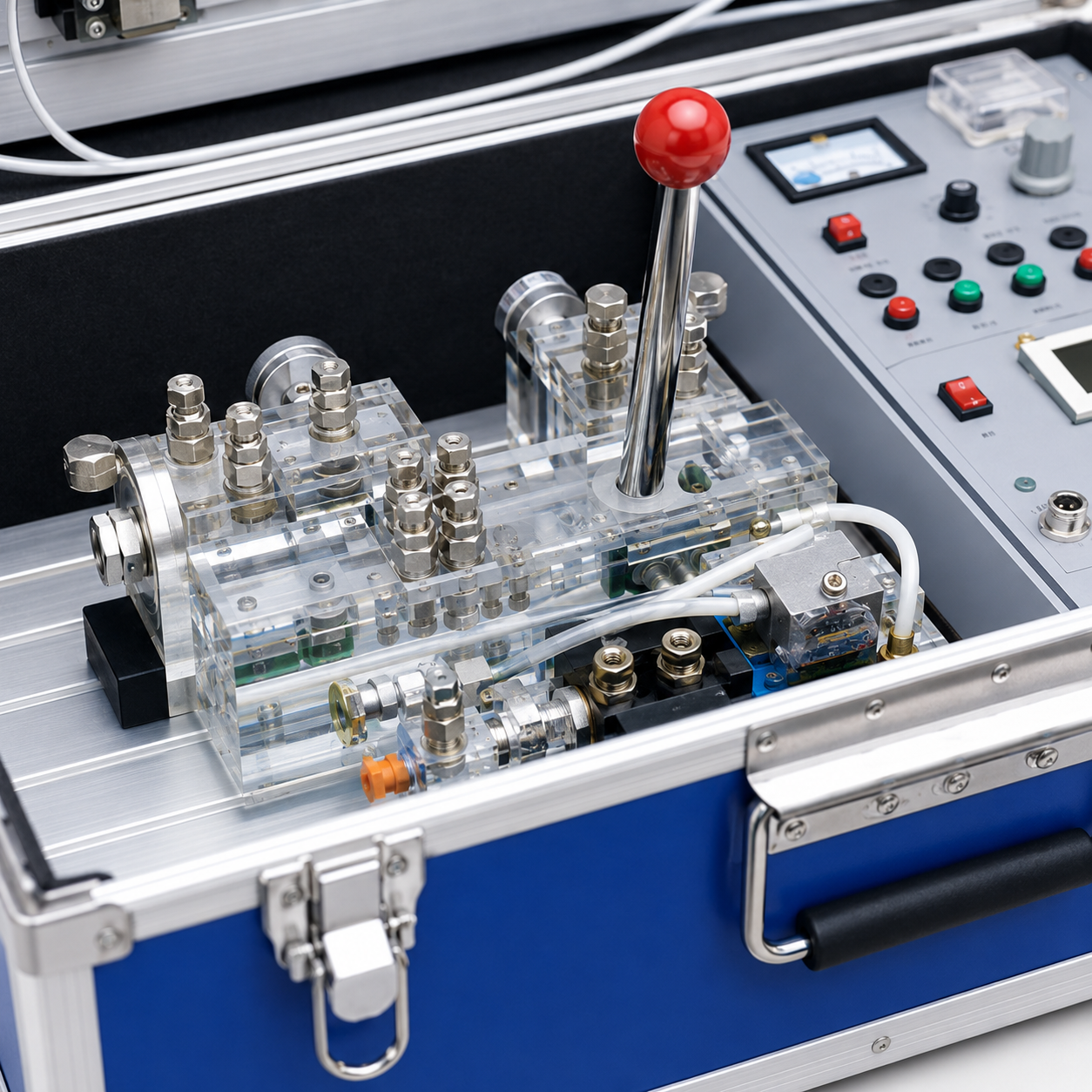

Most hydraulic components are made with transparent acrylic housings, allowing students to observe the internal working process of valves, cylinders, and hydraulic flow paths in real time.

Integrated Portable Training System

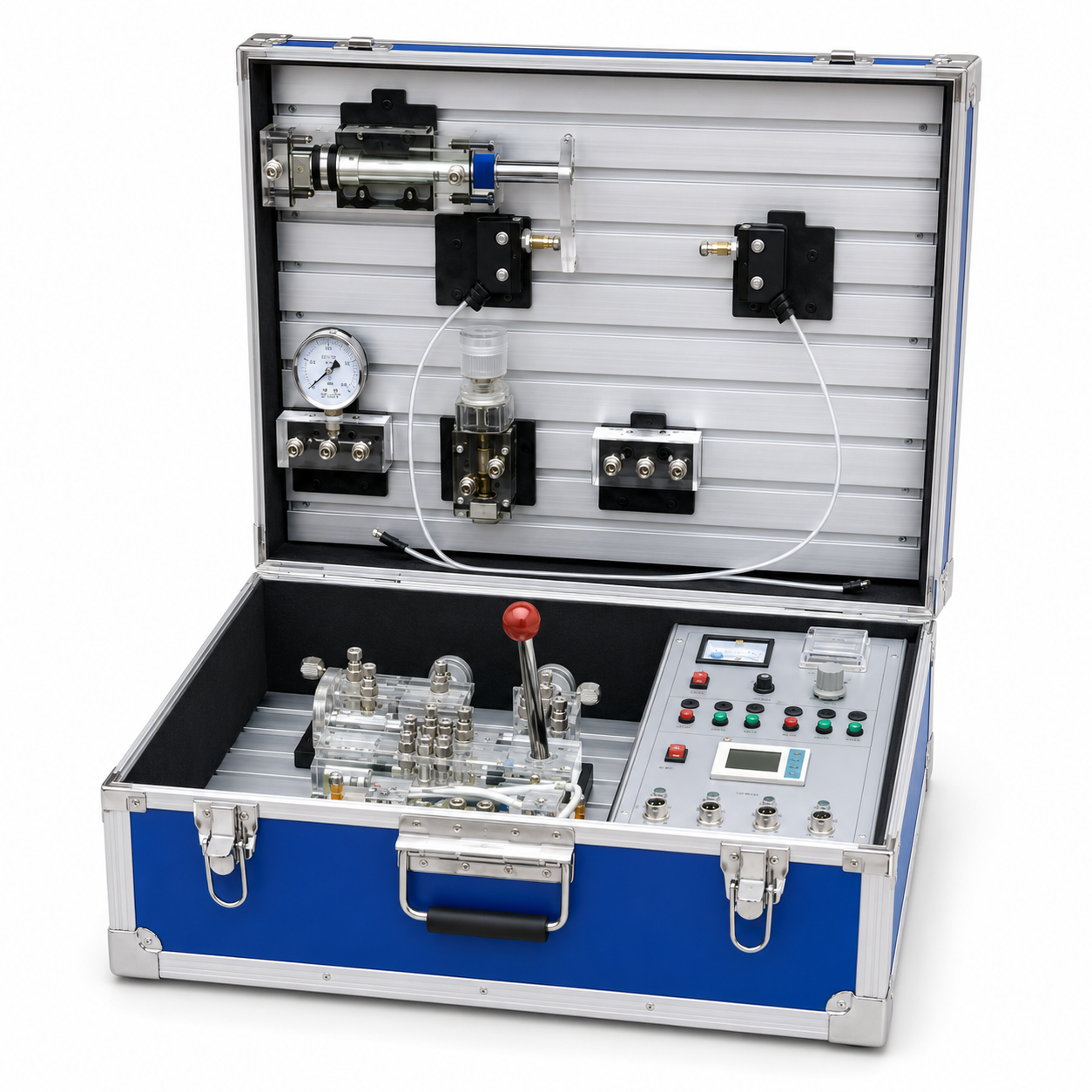

The system integrates hydraulic components, pump station, speed control motor, PLC control panel, electrical control section, hoses, and training modules into one portable aluminum case.

Designed for Classroom Demonstration

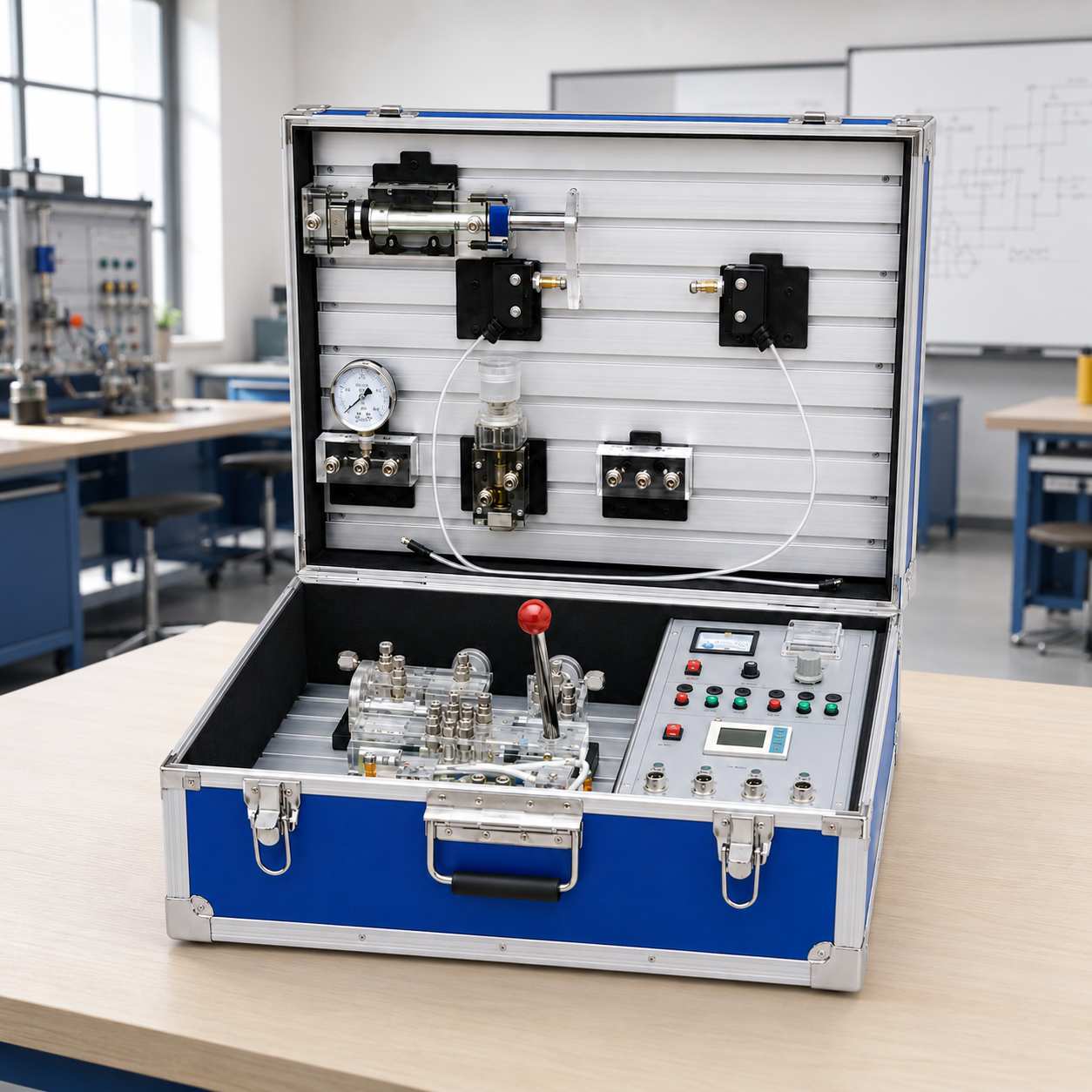

The compact case design allows instructors to easily bring the unit into classrooms, labs, or training rooms for live demonstration and hands-on teaching.

PLC-Controlled Training Platform

The system includes a Mitsubishi FX1S-10MR PLC controller, allowing students to learn hydraulic control together with basic electrical and PLC control principles.

Clear Hydraulic Circuit Observation

Transparent hoses and red hydraulic oil make the circuit operation more visible, helping students understand oil flow direction, pressure regulation, speed control, and actuator movement.

Reliable Hose Connection System

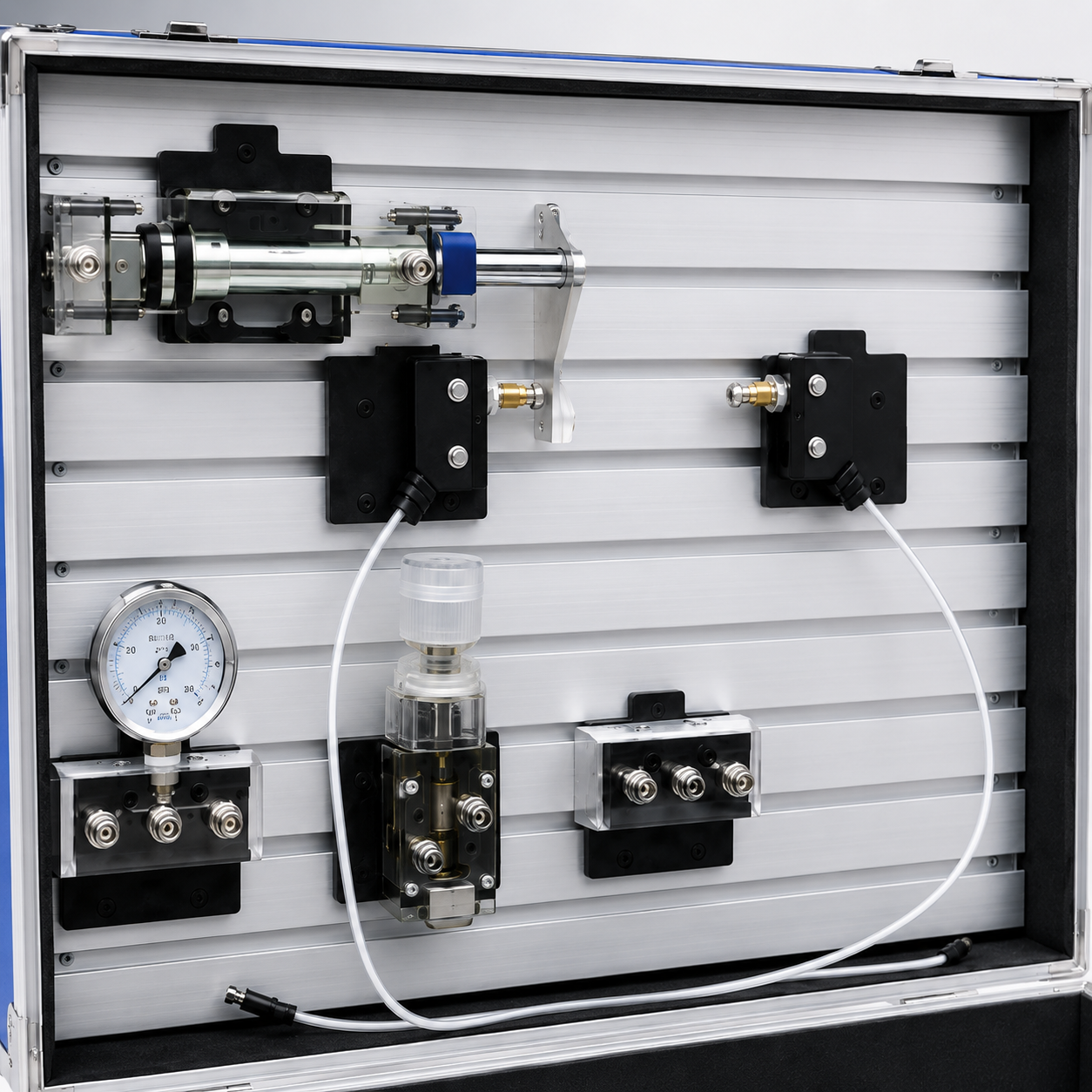

The hydraulic components are connected with transparent flexible hoses and quick connectors for easy circuit setup, compact layout, and reliable operation.

Ideal for Hydraulics and Mechatronics Education

This trainer is suitable for hydraulic transmission courses, hydraulics and pneumatics training, fluid power education, mechatronics labs, and technical workforce training.

Example Training Experiments

This hydraulic training kit supports multiple basic hydraulic circuit experiments, including:

1. Directional control circuit using an O-type directional valve

2. Inlet throttle speed control circuit

3. Return throttle speed control circuit

4. Limit switch directional reversing circuit

5. Pressure reduction circuit using a pressure reducing valve

6. Pressure setting circuit

7. Manual directional valve reversing circuit

8. Fixed displacement pump speed control circuit

9. Pressure adjustment circuit

10. Bypass throttle speed control circuit

These experiments help students understand the relationship between hydraulic components, oil flow, actuator movement, pressure regulation, and control logic.

Technical Specifications

Main Components

The training kit includes the following main components:

• Portable aluminum training case

• Oil tank

• Electrical control panel

• Mitsubishi PLC control unit

• Red hydraulic oil

• AC speed control motor

• Fixed displacement gear pump

• Speed regulator

• Transparent double-acting single-rod hydraulic cylinder

• Three-position four-way manual directional valve

• Three-position four-way electromagnetic directional valve

• Direct-acting relief valve

• Pilot-operated relief valve

• Throttle valve

• Inlet three-way valve

• Return three-way valve

• Hydraulic hoses and quick connectors

• Training manual

• Power cable

• Limit switches

Applications

This portable hydraulic PLC trainer is designed for:

• Hydraulic transmission courses

• Hydraulics and pneumatics training

• Fluid power education

• Mechatronics training programs

• Vocational and technical schools

• Community college lab training

• Engineering teaching demonstrations

• Workforce development programs

• Hands-on hydraulic circuit practice

Why Choose This Training Kit?

Traditional hydraulic systems are often difficult for beginners to understand because the internal movement of valves and oil flow cannot be seen directly. This transparent hydraulic trainer solves that problem by making the system visible.

Students can see how hydraulic oil flows through the circuit, how valves change direction, how pressure is regulated, and how the cylinder responds under different circuit conditions. This visual learning approach helps improve classroom teaching efficiency and makes hydraulic control principles easier to understand.

The portable case design also makes the unit practical for schools and training centers that need a compact, movable, and easy-to-demonstrate hydraulic training platform.

Notes

• Standard configuration is 220V / 50Hz.

• 110–120V / 60Hz version is available for U.S. customers upon request.

• Product appearance and configuration may be adjusted according to teaching requirements.

• Please contact us before ordering if you need voltage customization, plug customization, logo customization, or a specific PLC configuration.
