Siemens S7-1200 PLC Smart Factory Training System with 5-Axis Robotic Arm

Siemens S7-1200 PLC Smart Factory Training System is an all-in-one industrial automation training platform designed for PLC programming, mechatronics education, robotics training, motion control, vision inspection, and Industry 4.0 classroom applications.

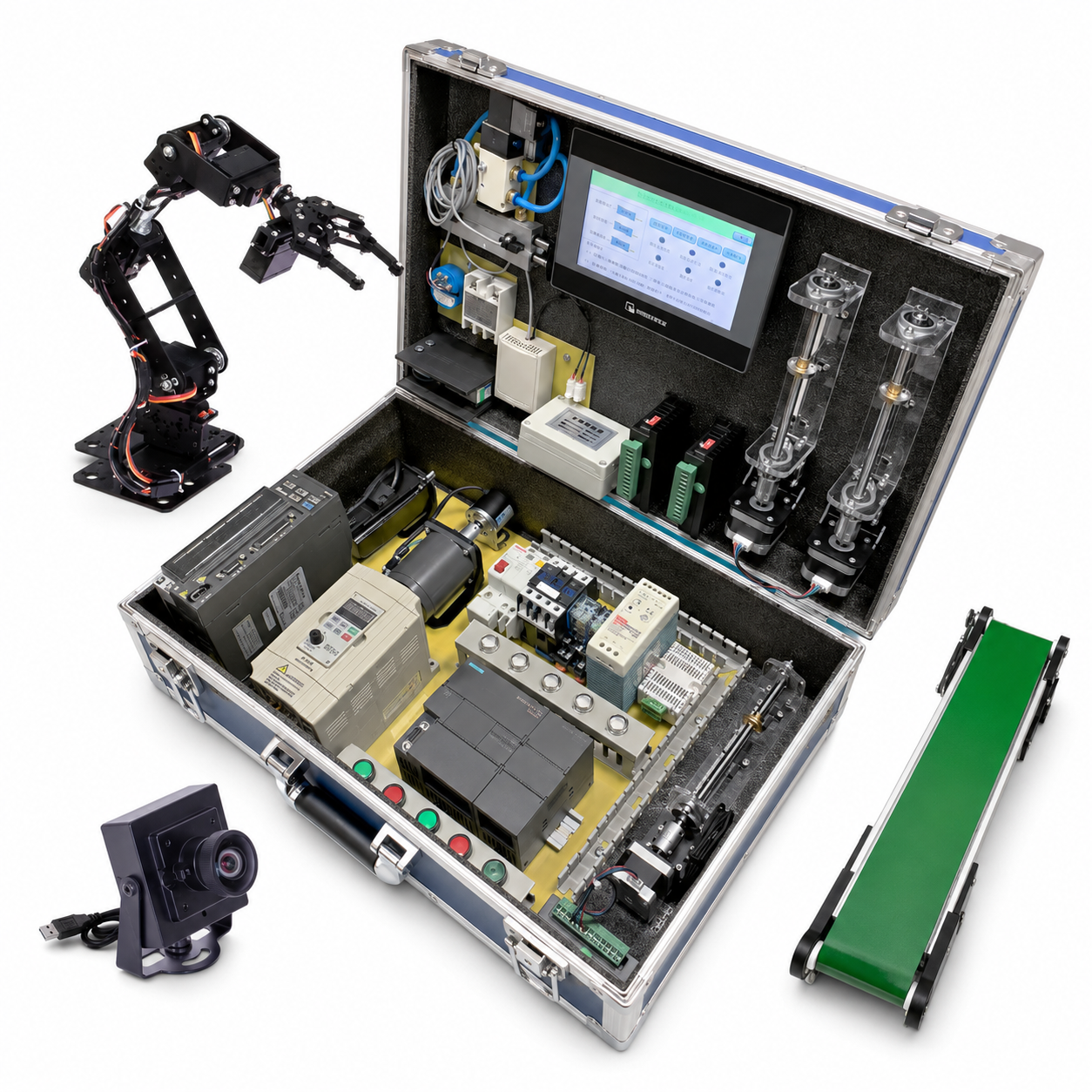

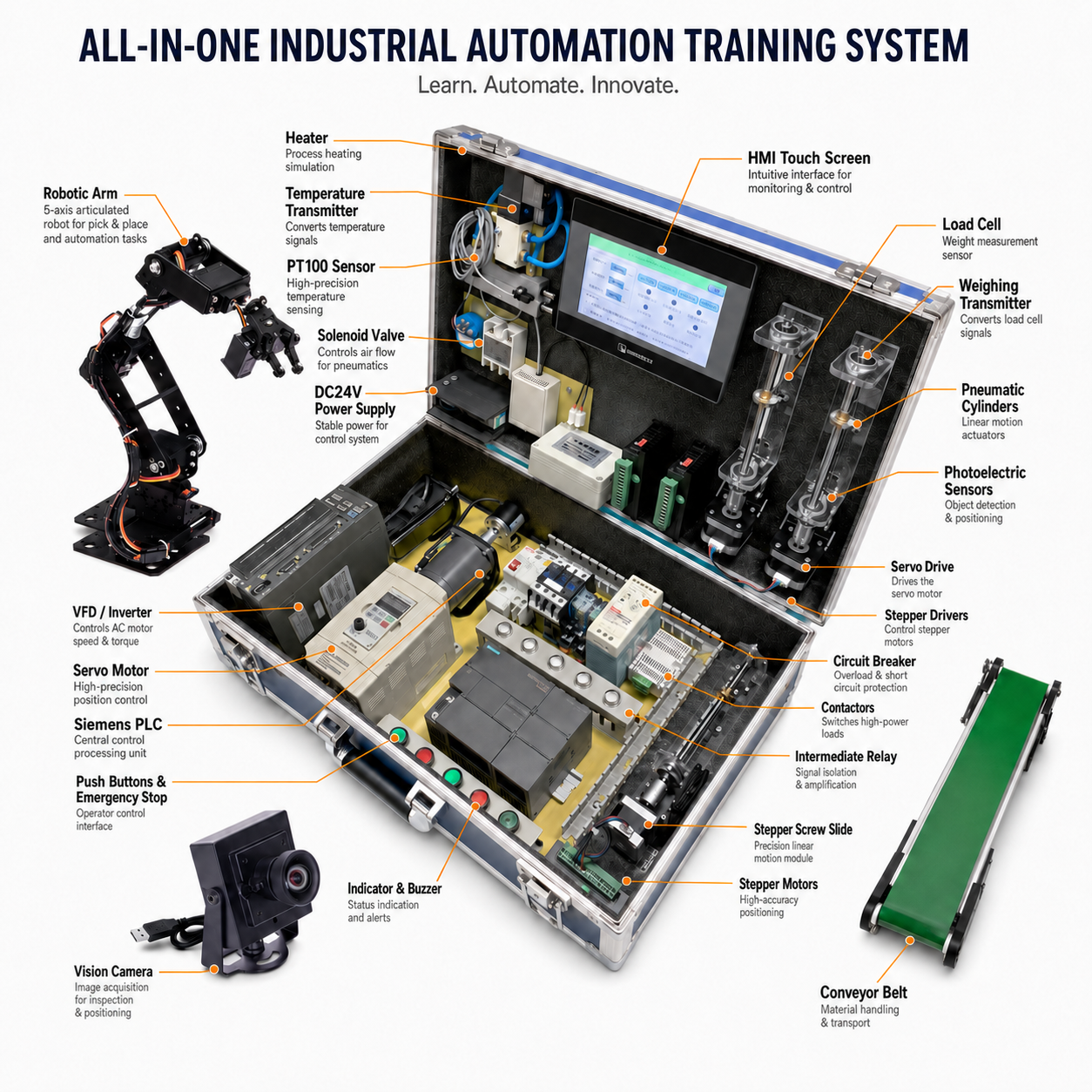

This compact training system integrates a Siemens S7-1200 PLC, HMI touch screen, 5-axis robotic arm, vision camera, conveyor belt, VFD/inverter, servo motor, stepper motors, pneumatic cylinders, temperature control module, weighing module, sensors, relays, contactors, push buttons, emergency stop, and industrial control components inside a portable aluminum training case.

It is suitable for universities, community colleges, vocational schools, technical training centers, automation laboratories, and industrial maintenance training programs.

Key Features

• Siemens S7-1200 PLC Control: Supports PLC programming, digital I/O control, analog signal processing, sequence control, and automation logic training.
• HMI Touch Screen: Allows students to practice operator interface design, parameter setting, monitoring, alarms, and manual/automatic control.
• 5-Axis Robotic Arm: Demonstrates robotic pick-and-place, material handling, and automated production line operation.
• Vision Camera Module: Supports image acquisition, inspection, positioning, and vision-based automation demonstrations.
• Conveyor Belt System: Simulates material transport, sensor detection, sorting, and smart factory workflow.
• VFD / Inverter Training: Enables AC motor speed control, forward/reverse operation, and frequency adjustment experiments.
• Servo & Stepper Motion Control: Includes servo motor, servo drive, stepper motors, stepper drivers, and screw slide modules for precision motion training.
• Pneumatic Control Module: Includes pneumatic cylinders, solenoid valve, and magnetic switches for air-driven automation projects.
• Temperature Control Training: Includes PT100 sensor, temperature transmitter, heater module, and PID control experiments.
• Weighing & Analog Signal Training: Includes load cell and weighing transmitter for measurement and analog input training.
• Portable Aluminum Case: Organized, compact, and easy to move between classrooms, labs, and training rooms.

Training Topics

• PLC programming and industrial control logic
• HMI interface design and monitoring
• VFD motor speed control
• Servo and stepper motor positioning
• Pneumatic cylinder control
• Temperature measurement and PID control
• Load cell and weighing signal processing
• Photoelectric sensor detection
• Vision inspection and positioning
• Robotic arm pick-and-place operation
• Conveyor automation and smart factory workflow
• Integrated mechatronics project training

Recommended Applications

• University automation laboratories
• Community college mechatronics programs
• Vocational and technical training schools
• PLC and industrial control training centers
• Robotics and Industry 4.0 demonstration labs
• Electrical engineering and industrial maintenance training

Note: Configuration can be customized according to classroom requirements. Please contact us if you need Allen-Bradley PLC, Siemens PLC, 110V/120V power adaptation, English training materials, or custom training projects.
