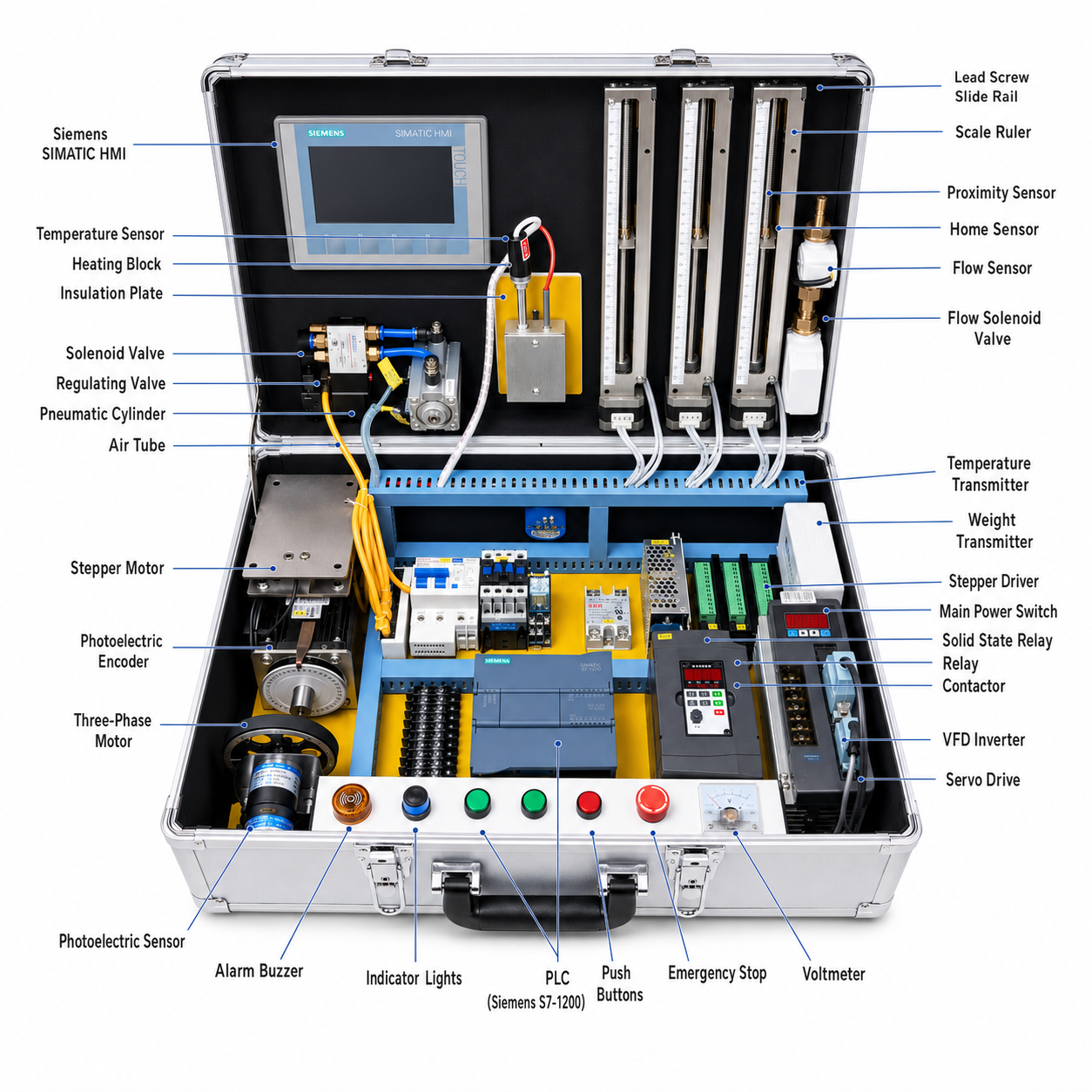

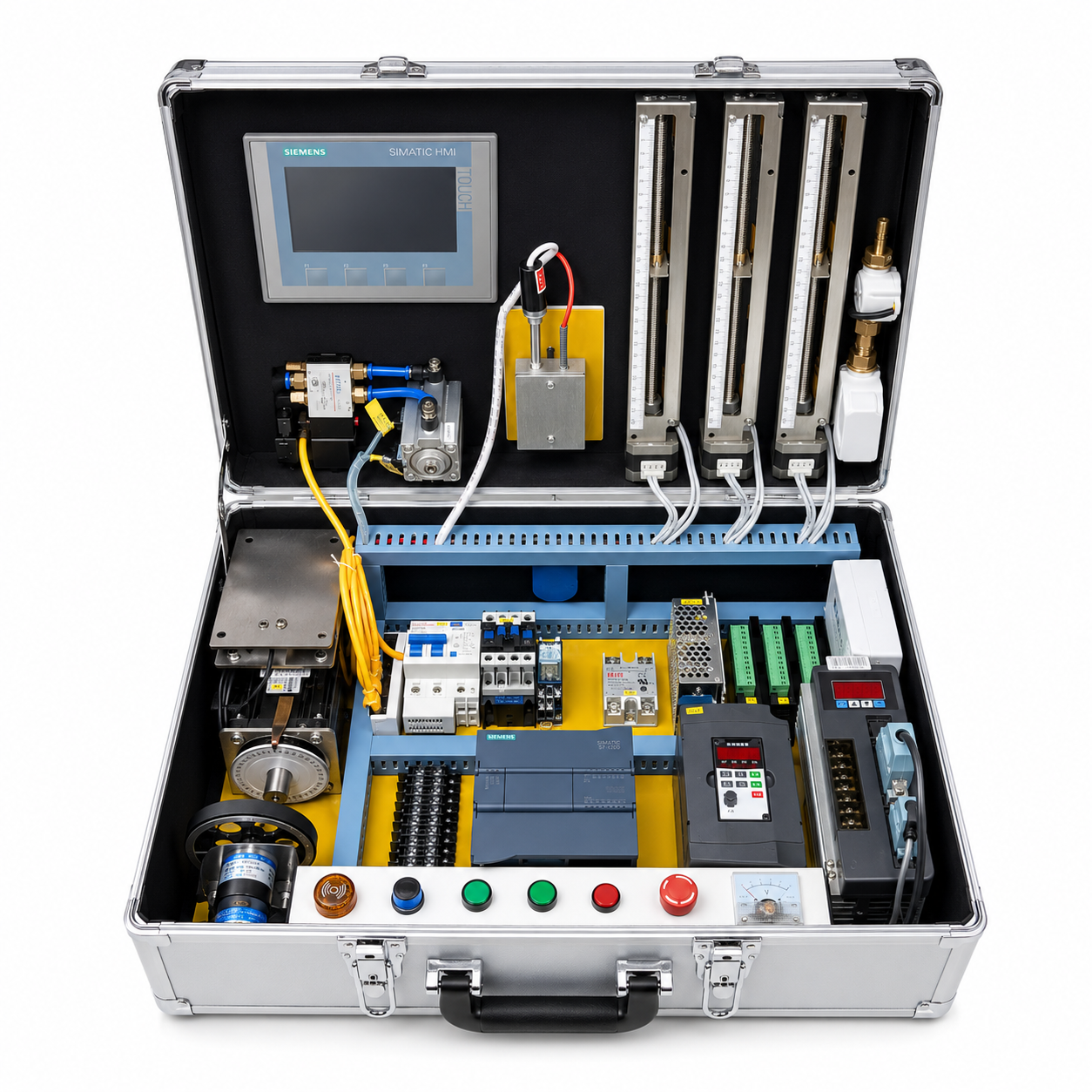

The Siemens S7-1200 Integrated Automation Trainer with 750W Servo is a portable multi-function PLC training workstation designed for universities, vocational schools, technical colleges, and industrial automation labs.
Built around the Siemens S7-1200 PLC platform, this suitcase-style training system integrates PLC programming, HMI operation, motion control, VFD motor control, PID temperature control, weighing, flow control, pneumatic control, sensor detection, and electrical wiring practice into one compact workstation.
This upgraded version includes a 750W servo motor and servo drive, making it suitable for teaching servo positioning, speed control, direction control, and PLC-based motion control experiments.
Key Training Functions
- Siemens S7-1200 PLC programming
- HMI touchscreen operation
- Digital input and output wiring

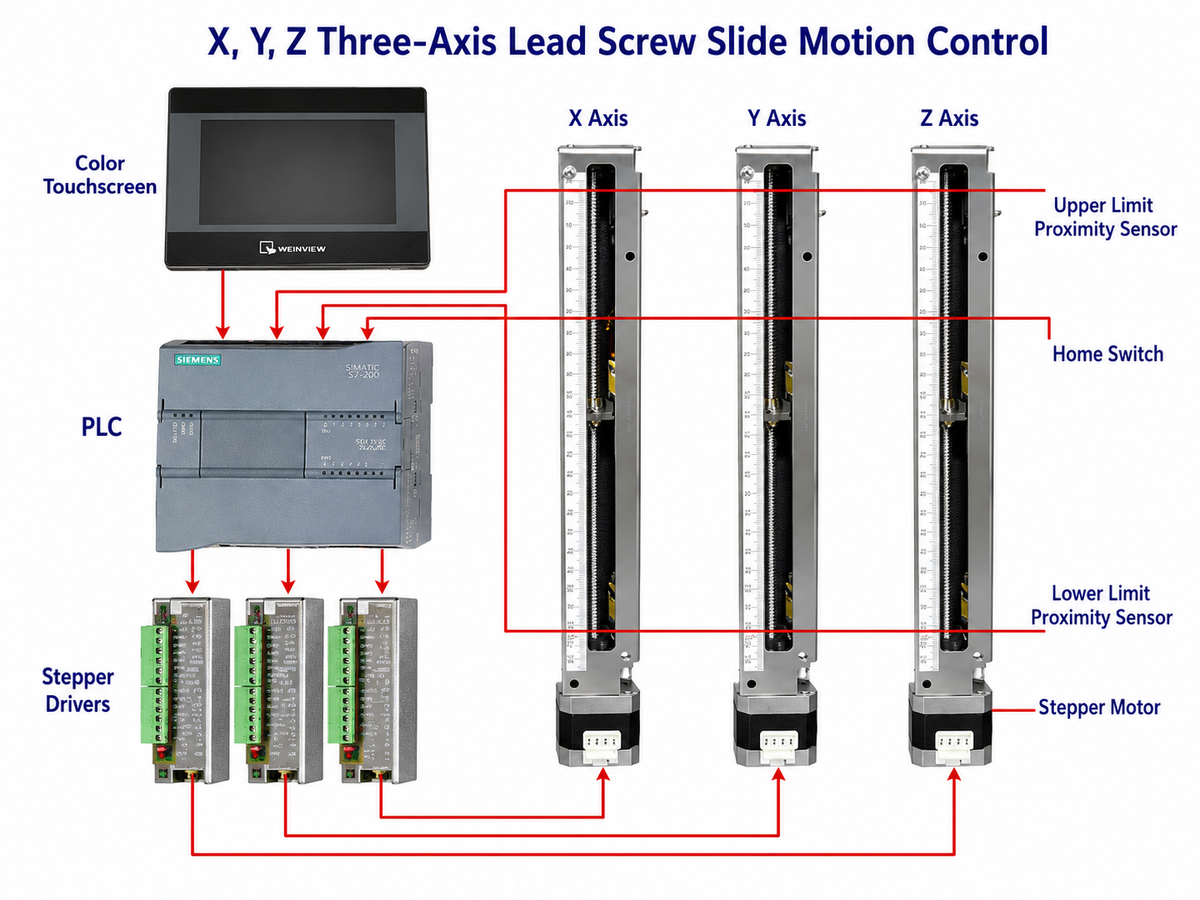

- Three-axis X/Y/Z stepper motion control
- 750W servo motor and servo drive training
- VFD inverter and three-phase motor speed control

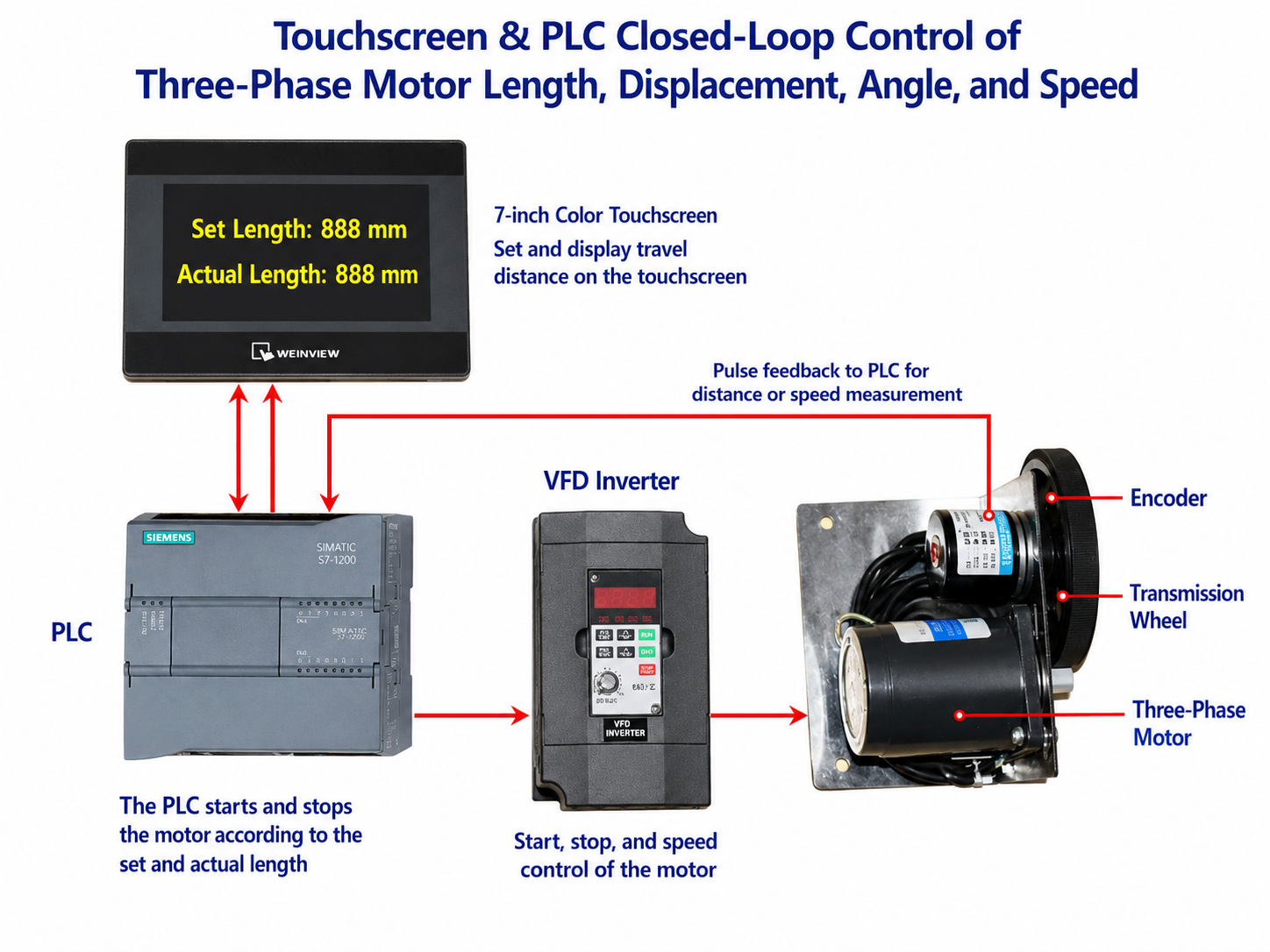

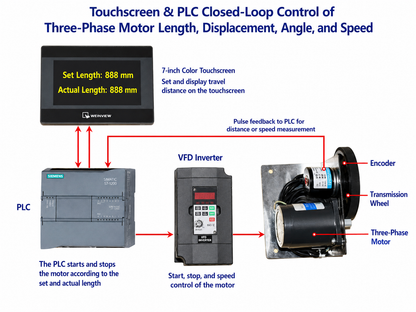

- Encoder feedback and closed-loop speed measurement

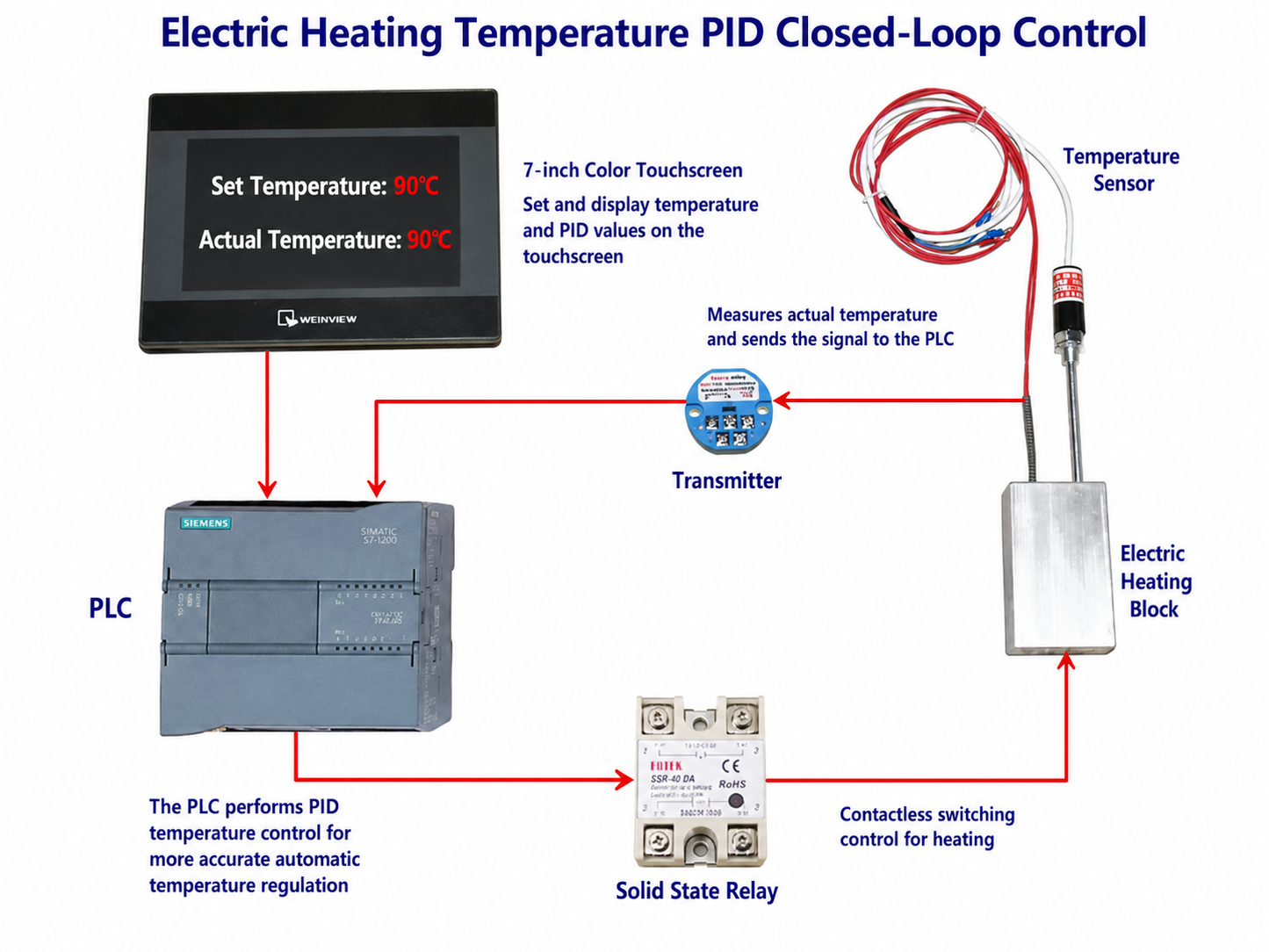

- PID temperature control with heating module

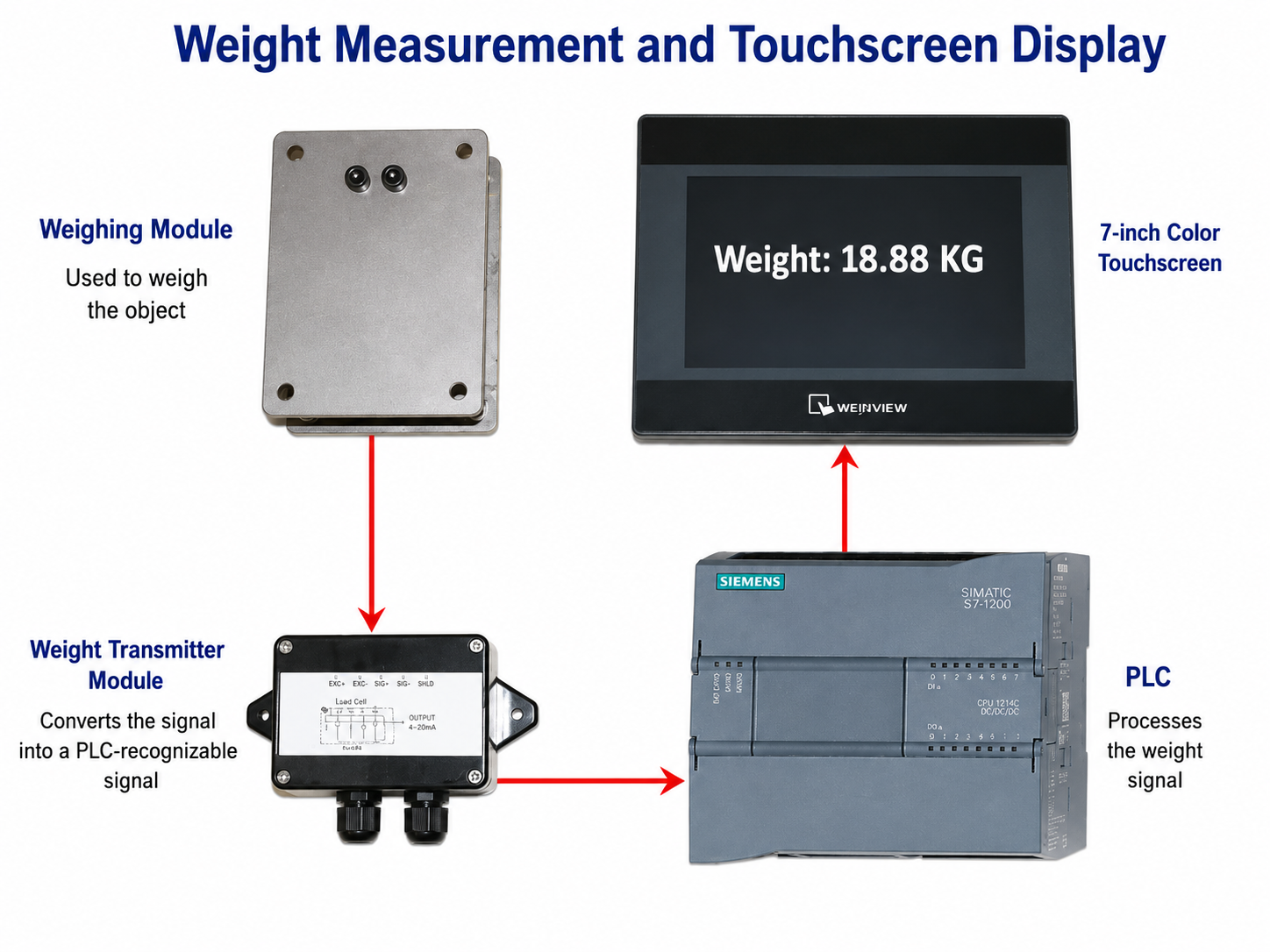

- Load cell weighing and touchscreen display
- Flow measurement and flow solenoid valve control

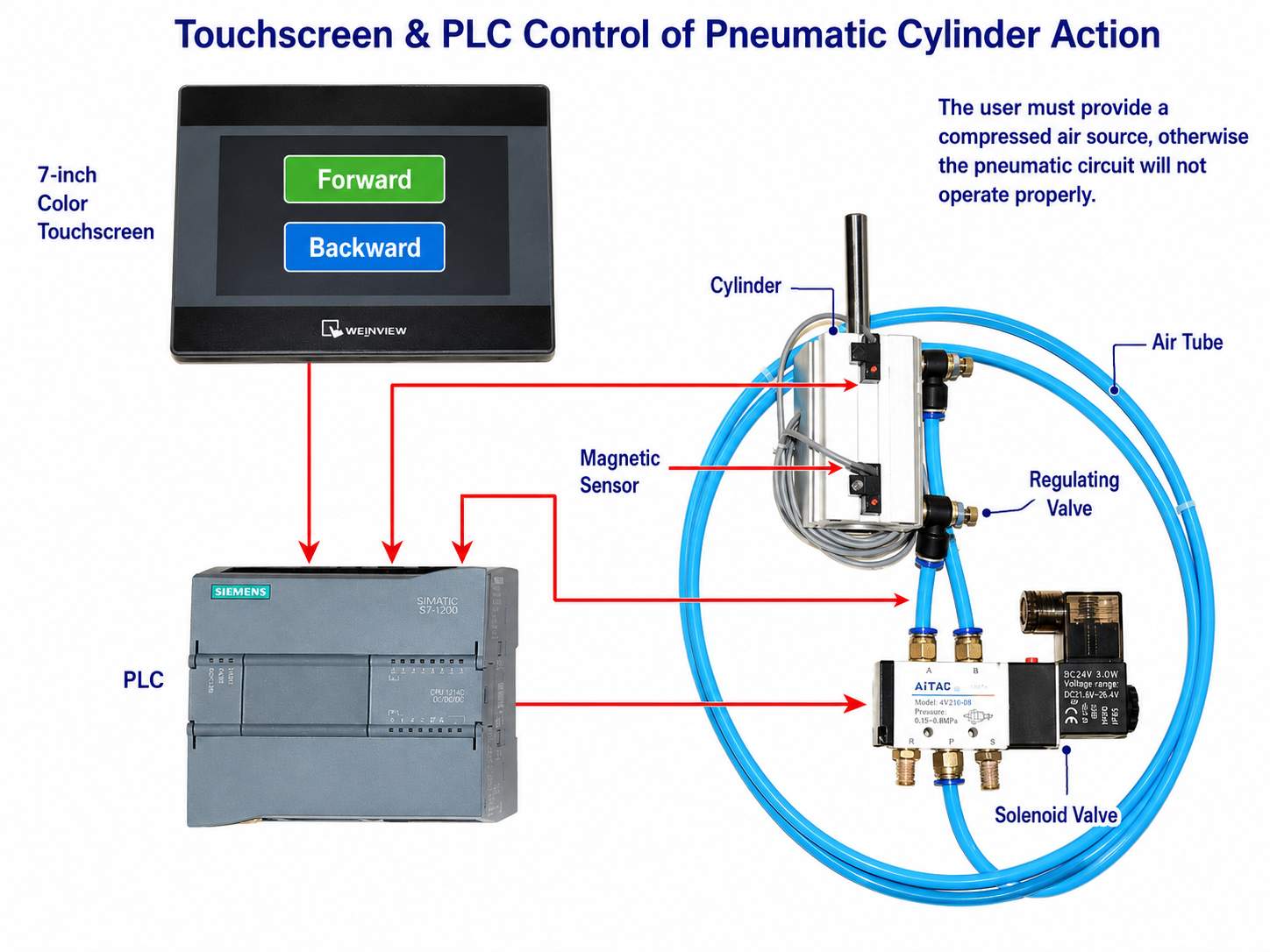

- Pneumatic cylinder forward/backward control
- Sensor detection and signal processing
- Relay, contactor, solid state relay, circuit breaker, and terminal wiring
- Emergency stop and basic safety control
- Automatic sequence control and troubleshooting practice
Main Features
- Portable aluminum suitcase-style design
- Siemens S7-1200 PLC-based control platform
- HMI touchscreen for parameter setting and system monitoring
- Integrated 750W servo motor and servo drive
- Three-axis lead screw slide module for motion control training
- Stepper motors and stepper drivers
- VFD inverter with three-phase motor
- Temperature sensor, transmitter, heating block, and solid state relay
- Weighing module with load cell and weight transmitter
- Flow sensor and flow control valve
- Pneumatic cylinder, solenoid valve, regulating valve, magnetic sensor, and air tube
- Push buttons, indicator lights, buzzer, emergency stop, and voltmeter
- Electrical wiring components including relay, contactor, circuit breaker, power supply, terminal blocks, and cable ducts
Typical Experiments
- PLC input/output wiring
- HMI parameter setting and display
- Three-axis stepper motor motion control
- Servo motor speed and position control
- VFD motor start, stop, forward/reverse, and speed regulation
- Encoder feedback speed measurement
- PID temperature control
- Load cell weighing and HMI display
- Flow measurement and valve control
- Pneumatic cylinder control
- Relay and contactor interlock control
- Emergency stop circuit demonstration
- Automatic sequence control and fault diagnosis
What’s Included

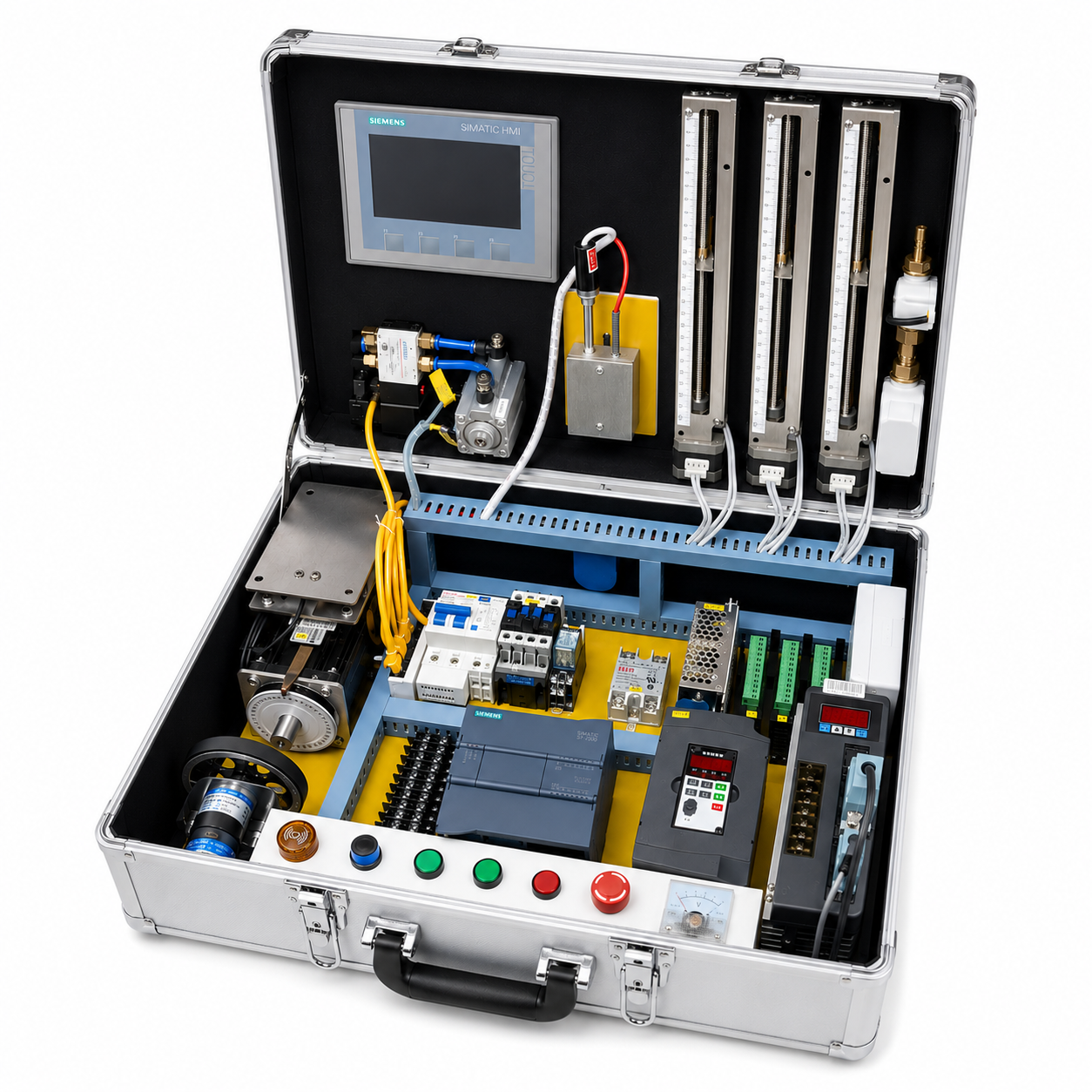

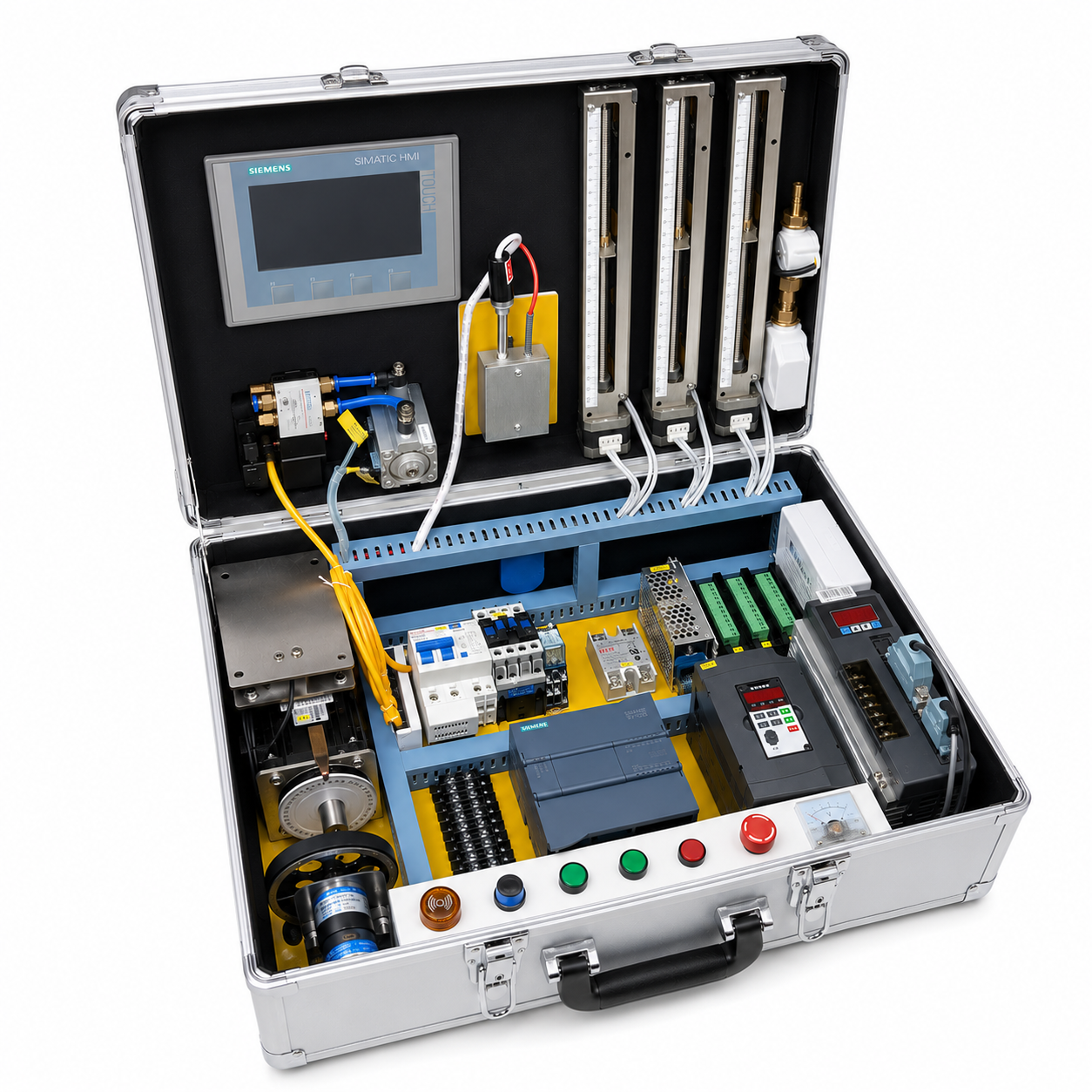

- Portable aluminum suitcase training workstation
- Siemens S7-1200 PLC controller
- HMI touchscreen
- 750W servo motor and servo drive
- Three-axis lead screw slide module
- Stepper motors and stepper drivers
- VFD inverter
- Three-phase motor
- Encoder and transmission wheel
- Temperature sensor, temperature transmitter, heating block, and solid state relay
- Load cell / weighing module and weight transmitter
- Flow sensor and flow solenoid valve
- Pneumatic cylinder, solenoid valve, regulating valve, magnetic sensor, and air tube
- Push buttons, indicator lights, emergency stop, buzzer, and voltmeter
- Relay, contactor, circuit breaker, power supply, terminal blocks, cable ducts, and wiring components
- Connection cables and accessories
Power Supply
Standard configuration is 220V.
For customers in the United States and other 110V/120V regions, a compatible transformer or customized power option can be supplied upon request.
Important Note
The pneumatic module requires an external compressed air source. Air compressor is not included by default.
Recommended For
- University engineering departments
- Vocational and technical schools
- Community colleges
- Industrial automation laboratories
- Electrical engineering courses
- Mechatronics training programs
- PLC programming courses
- Process control training
- Motor control and motion control courses
- Corporate automation training centers
Customization Options
This training system can be customized according to teaching requirements. Available options include different Siemens S7-1200 CPU models, servo motor power options, HMI size, VFD configuration, English panel labels, 110V/120V power adaptation, additional sensors, custom training modules, and alternative PLC brands.
Available PLC customization options may include Siemens, Allen-Bradley, Mitsubishi, Delta, and other PLC platforms.
Product Note
Siemens and SIMATIC names are used to describe the PLC and HMI configuration. Final component models, PLC CPU version, HMI type, servo power, VFD brand, wiring design, and training functions can be confirmed before shipment. Wiring diagram, sample PLC programs, and English training manual are available upon request.
