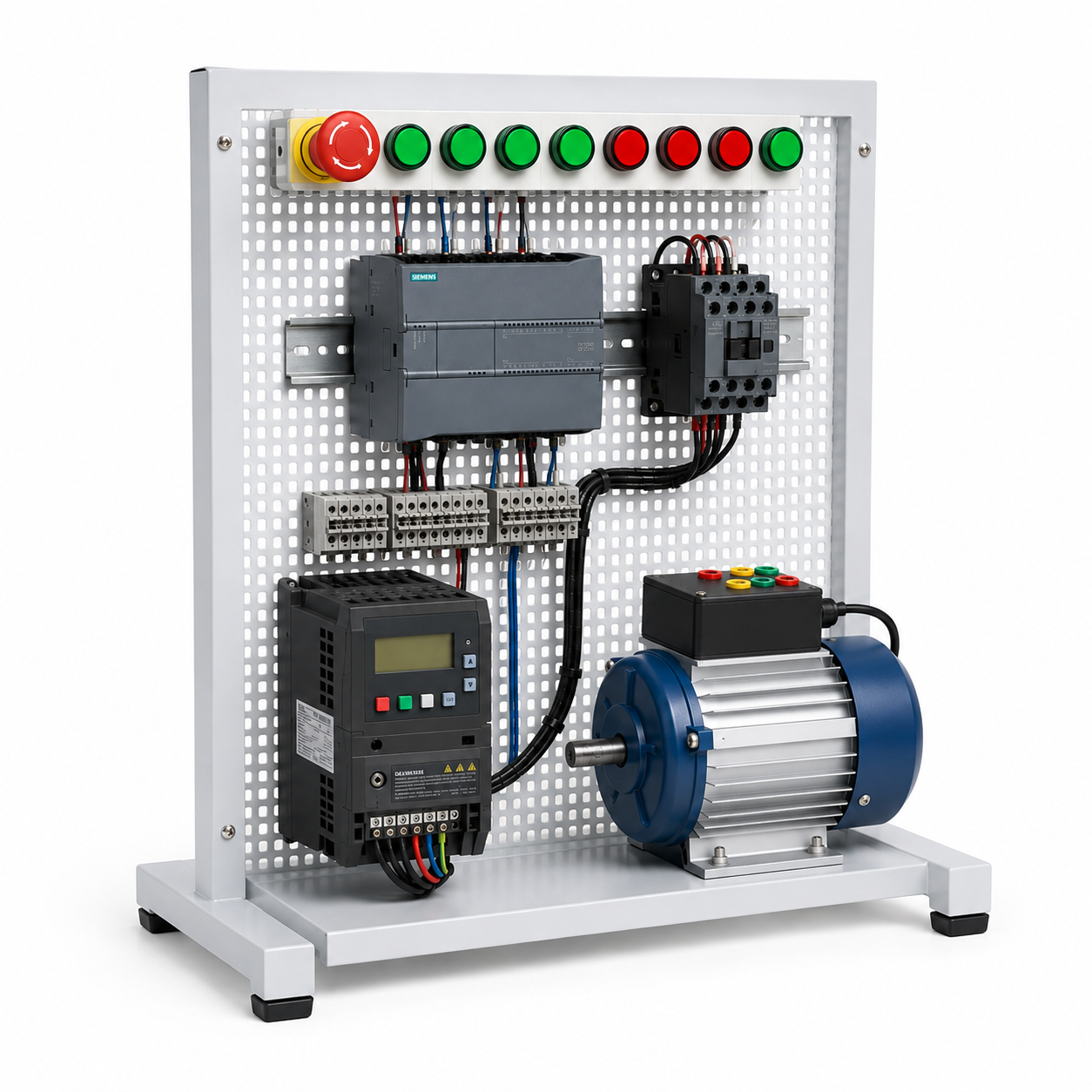

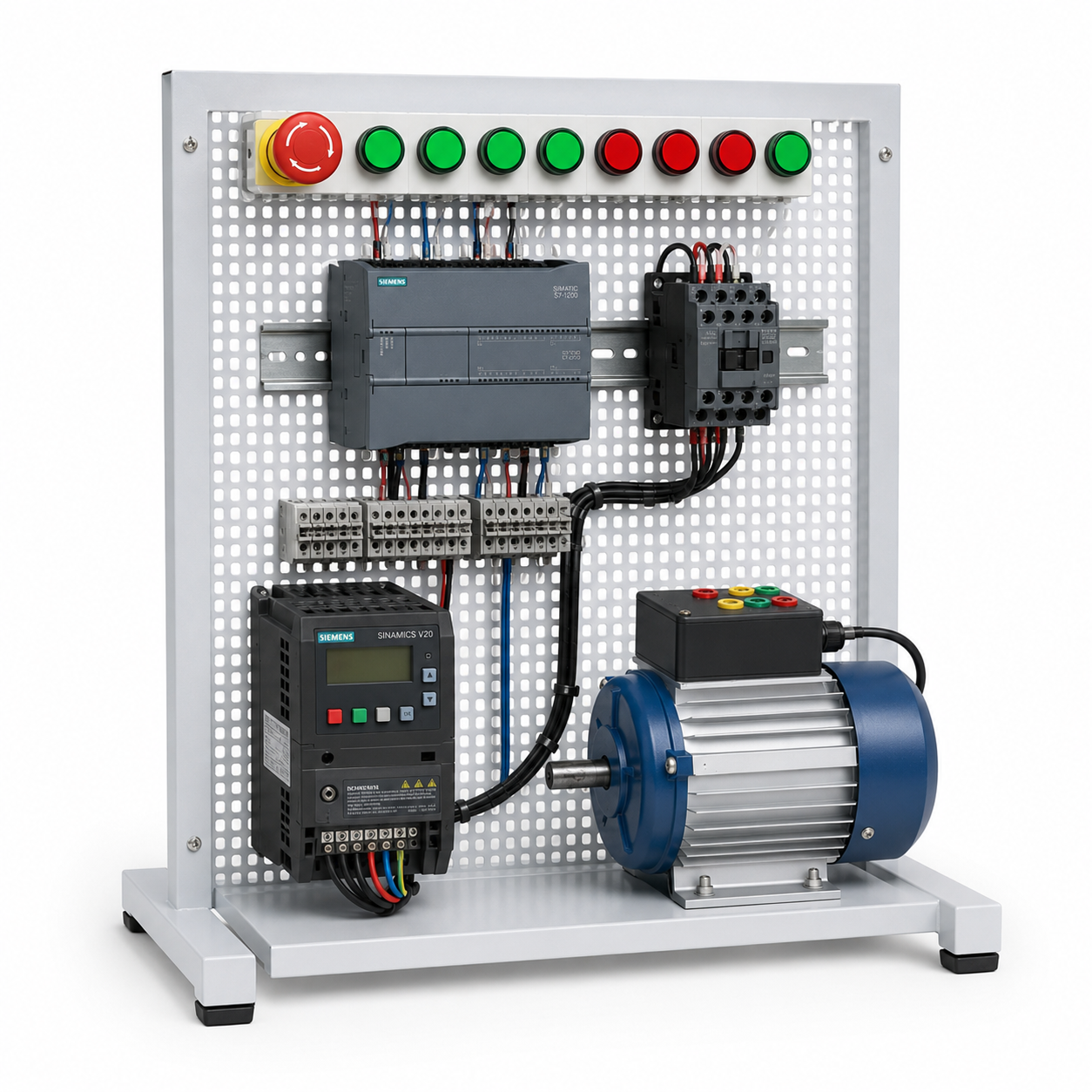

Siemens S7-1200 PLC VFD Motor Control Trainer

The PLC & VFD Motor Control Trainer is designed for technical colleges, universities, vocational schools, industrial training centers, and automation laboratories.

This compact training system enables students to learn the complete workflow of PLC-controlled variable frequency drive (VFD) motor control using real industrial components. It provides practical experience in programming, electrical wiring, motor operation, and industrial control logic.

Built around the Siemens S7-1200 PLC and Siemens SINAMICS V20 inverter, the trainer allows users to understand how PLCs communicate with industrial drives to control three-phase induction motors safely and efficiently.

Key Features

• Siemens S7-1200 PLC Controller
• Siemens SINAMICS V20 Variable Frequency Drive
• Three-Phase Induction Motor
• Industrial Push Buttons & Indicator Lights
• Emergency Stop Circuit
• AC Contactor & Protection Circuit
• DIN Rail Wiring Practice
• Industrial Terminal Blocks
• Compact Desktop Training Frame
• Ready-to-Use Demonstration Programs
• Ideal for PLC Programming & Motor Control Courses

Training Topics

Students can perform the following industrial automation exercises:

• PLC Basic Programming
• Motor Start / Stop Control
• Forward & Reverse Rotation
• Variable Speed Control
• VFD Parameter Configuration
• Digital I/O Control
• Electrical Wiring Practice
• Contactor Control Circuits
• Industrial Safety & Emergency Stop
• Motor Protection Logic
• Fault Diagnosis
• Industrial Commissioning Fundamentals

Applications

Suitable for:

• Universities
• Technical Colleges
• Vocational Schools
• Mechatronics Programs
• Electrical Engineering Laboratories
• Industrial Automation Courses
• PLC Training Centers
• Factory Maintenance Training

Standard Configuration

Optional Configurations

• Siemens S7-1200 CPU 1215C
• Allen-Bradley Micro820 PLC
• Delta DVP Series PLC
• Mitsubishi FX5U PLC
• Schneider Modicon PLC
• ABB PLC
• Omron NX1P2 PLC

Optional Power Supply

• 110V / 60Hz (North America)
• 220V / 50Hz
• 230V / 50Hz

Available with Siemens, Allen-Bradley, Mitsubishi, Delta, Omron, Schneider, and ABB PLC platforms upon request.
